CORE 3B:

CORE 3B:

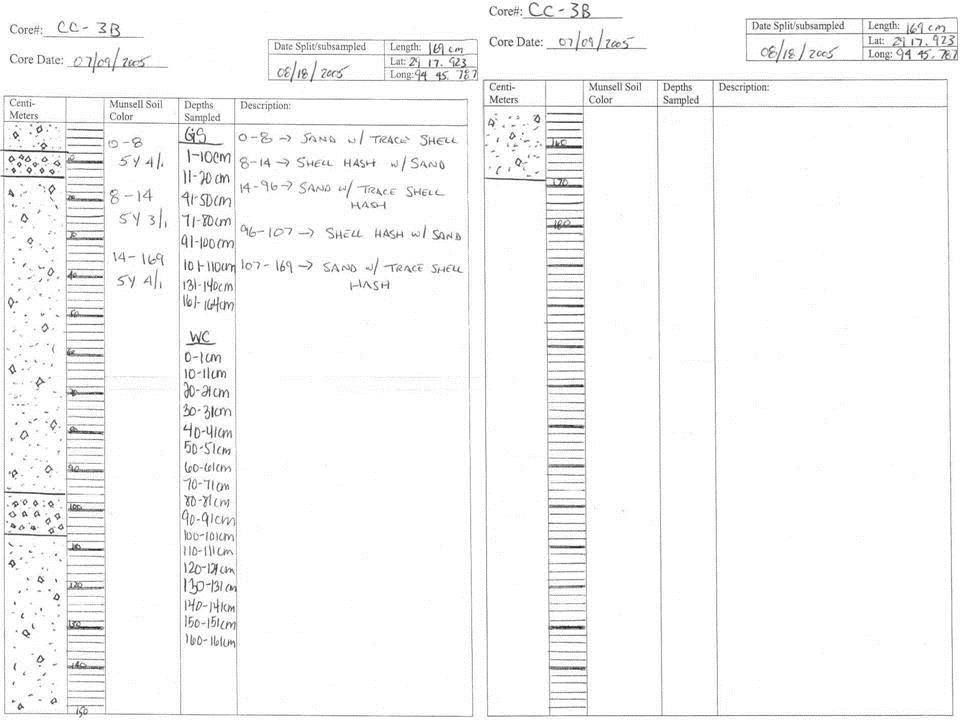

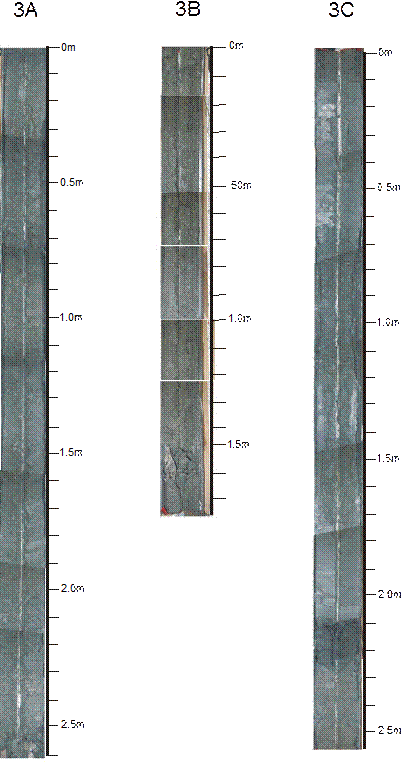

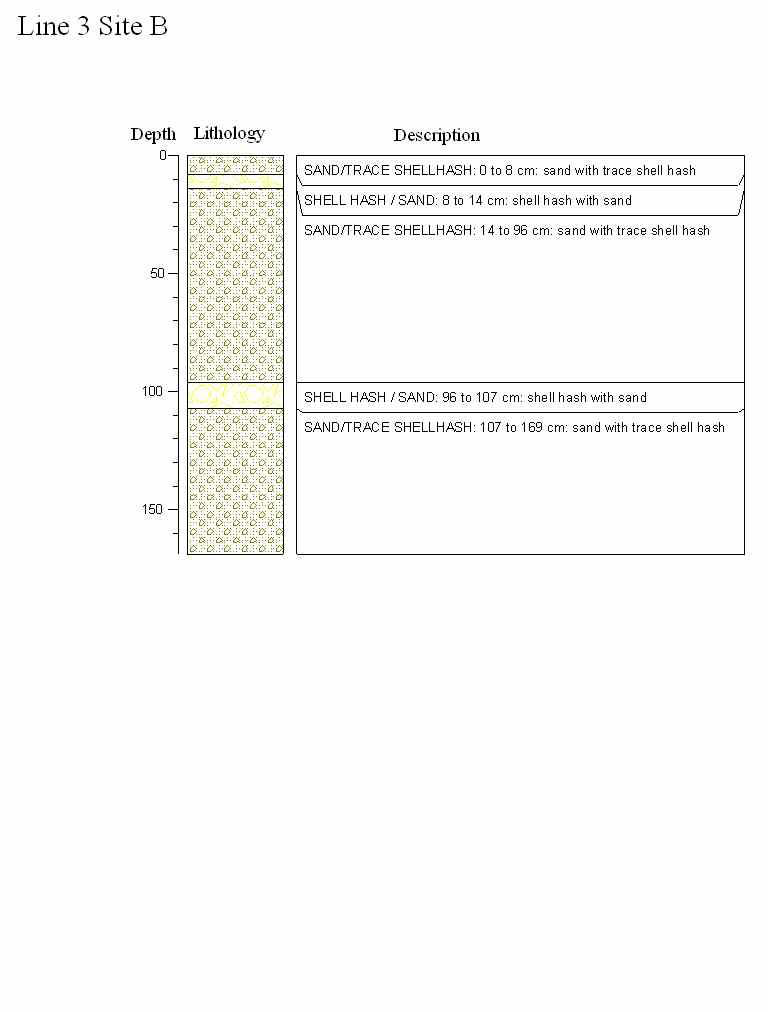

Core 3B was collected in a water depth of 6.2 m (20.5ft) (Table 1) and was

169cm (66.5in) long (Figures 1 & 9-11). A total of 8 grain size samples were taken at depths of 1-10cm (0.4-3.9in), 11-20cm (4.3-

7.9in), 41-50cm (16.1-19.7in), 71-80cm (28-31.5in), 91-100cm (35.8-39.4in), 101-110cm (39.8-43.3in), 131-140cm (51.6-55.1in), and

161-164cm (63.4-64.6in). The grain size analyses revealed that the entire core remained above 81% sand and had a mean grain size

ranging from 0.1029mm (3.3phi) to 0.1156mm (3.1phi).

Sand and shell weights are shown in Table 7. Percent shell, sand, silt and clay are shown in Table 8. Median grain size,

mean grain size, skewness and sorting index are shown in Table 11. Graphs of the results are located in Figures 12-15.

It was determined that core 3B had approximately 169cm (66.5in) of sediment that contained at least 50% sand, of which

100cm (39.4in) was located less than 1m (39.4in) in depth.

Core ID

Sample Depth (cm)

shell weight (g)

200+ weigh (g)t

200-230 weight (g)

overall sand weight (g)

1-10

5.67

116.82

2.36

116.82

11-20

7.29

118.87

2.28

118.87

41-50

1.14

121.26

4.31

121.26

71-80

1.41

122.27

4.41

122.27

91-100

4.57

90.03

4.02

90.03

101-110

6.11

124.57

3.09

124.57

131-140

0.83

129.83

1.46

129.83

161-164

1.08

117.38

1.47

117.38

Table 1: Shell and Sand weights for core 3B

Core ID

Sample Depth (cm)

% shell

% sand

%silt

%clay

1-10

4.25

87.66

3.95

4.14

11-20

5.10

83.09

4.31

7.51

41-50

0.83

88.23

7.04

3.90

71-80

1.02

88.20

6.94

3.85

91-100

4.12

81.15

9.90

4.83

101-110

4.12

84.03

6.94

4.91

131-140

0.59

92.14

3.40

3.87

161-164

0.85

92.28

3.68

3.19

Table 2: Percent Shell, Sand, Silt and Clay for core 3B

Core ID

Sample

Depth

(cm)

N10/

2.0mm

Screen

Sample

Weight

(g)

N14/

1.40mm

Screen

Sample

Weight

(g)

N18/

1.00mm

Screen

Sample

Weight

(g)

N25/

710μm

Screen

Sample

Weight

(g)

N35/

500μm

Screen

Sample

Weight

(g)

N45/

355μm

Screen

Sample

Weight

(g)

N60/

250μm

Screen

Sample

Weight

(g)

N80/

180μm

Screen

Sample

Weight

(g)

N125/

125μm

Screen

Sample

Weight

(g)

N170/

90μm

Screen

Sample

Weight

(g)

N200/

75μm

Screen

Sample

Weight

(g)

N230/

63μm

Screen

Sample

Weight

(g)

CATCH

Pan

1-10

2.26

1.21

0.94

0.62

0.36

0.28

0.50

1.47

41.09

67.09

6.67

2.36

1.16

11-20

3.58

1.24

0.91

0.72

0.42

0.61

2.23

40.34

66.81

8.88

2.28

1.09

41-50

0.23

0.29

0.19

0.16

0.09

0.18

0.43

1.18

33.81

77.27

8.57

4.31

3.36

71-80

0.42

0.31

0.16

0.20

0.25

0.98

29.21

78.52

13.31

4.41

2.34

91-100

0.69

0.98

0.88

0.77

0.68

0.57

0.82

1.85

18.18

60.06

9.12

4.02

2.85

101-110

1.07

1.20

1.07

1.13

0.86

0.78

0.77

2.40

37.22

73.29

10.89

3.09

1.99

131-140

0.21

0.09

0.08

0.09

0.13

0.23

0.56

0.99

46.97

75.29

6.02

1.46

1.17

161-164

0.38

0.16

0.12

0.08

0.09

0.25

0.46

1.02

28.90

78.52

8.48

1.47

0.96

Table 3: RO-TAP data for core 3B

ASTM

Classification

coarse

sand

medium

sand

medium

sand

medium

sand

medium

sand

fine sand

fine

sand

fine

sand

fine sand

fine

sand

silt

Wentworth

Classification

granule

very

coarse

sand

very

coarse

sand

coarse

sand

coarse

sand

medium

sand

fine

sand

fine

sand

fine sand

very fine

sand

very fine

sand

very

fine

silt

Core ID

Sample

Depth

(cm)

% finer

than

N10/

2.0mm/

-1.0Φ

Screen

% finer

than

N14/

1.40mm

/ -0.5Φ

Screen

% finer

than

N18/

1.00mm/

0.0Φ

Screen

% finer

than

N25/

710μm

/ 0.5Φ

Screen

% finer

than

N35/

500μm/

1.0Φ

Screen

% finer

than

N45/

355μm /

1.5Φ

Screen

% finer

than

N60/

250μm

2.0Φ

Screen

% finer

than

N80/

180μm/

2.5 Φ

Screen

% finer

than

N125/

125μm/

3.0Φ

Screen

% finer

than

N170/

90μm /

3.5Φ

Screen

% finer

than

N200/

75μm /

4.0Φ

Screen

finer

than

4μm/

8Φ

Observed

Contents of

the sample

shell

only

shell

only

shell

only

shell

only

shell

only

shell

only

shell

only

sand

silt

1-10

98.3

97.4

96.7

96.2

96.0

95.7

95.4

94.3

63.4

13.1

8.1

4.1

11-20

97.5

96.6

96.0

95.5

95.2

94.9

94.5

92.9

64.7

18.0

11.8

7.5

41-50

99.8

99.6

99.5

99.4

99.3

99.2

98.9

98.0

73.4

17.2

10.9

3.9

71-80

99.7

99.5

99.4

99.2

99.1

99.0

98.8

98.1

77.0

20.4

10.8

3.8

91-100

99.4

98.5

97.7

97.0

96.4

95.9

95.1

93.5

77.1

23.0

14.7

4.8

101-110

99.3

98.5

97.7

97.0

96.4

95.9

95.4

93.7

68.6

19.2

11.8

4.9

131-140

99.9

99.8

99.7

99.6

99.4

99.0

98.3

65.0

11.5

7.3

3.9

161-164

99.7

99.6

99.5

99.4

99.3

99.2

98.8

98.0

75.3

13.5

6.9

3.2
