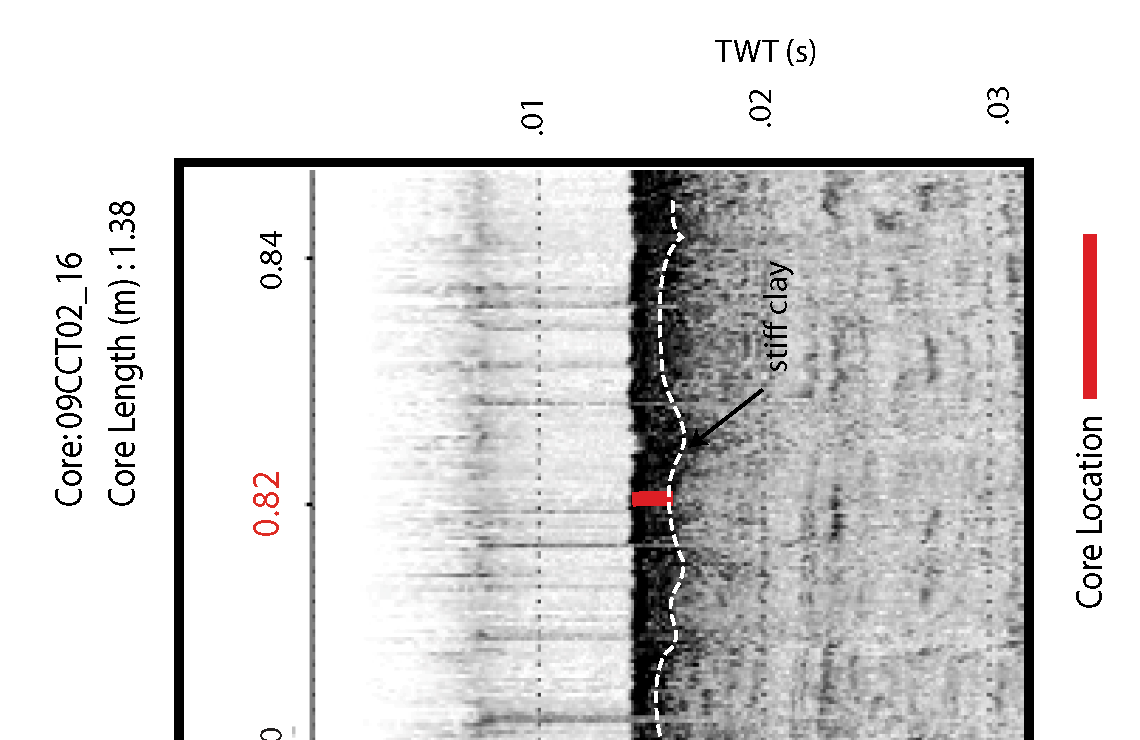

09CCT02_16 Core Location
274

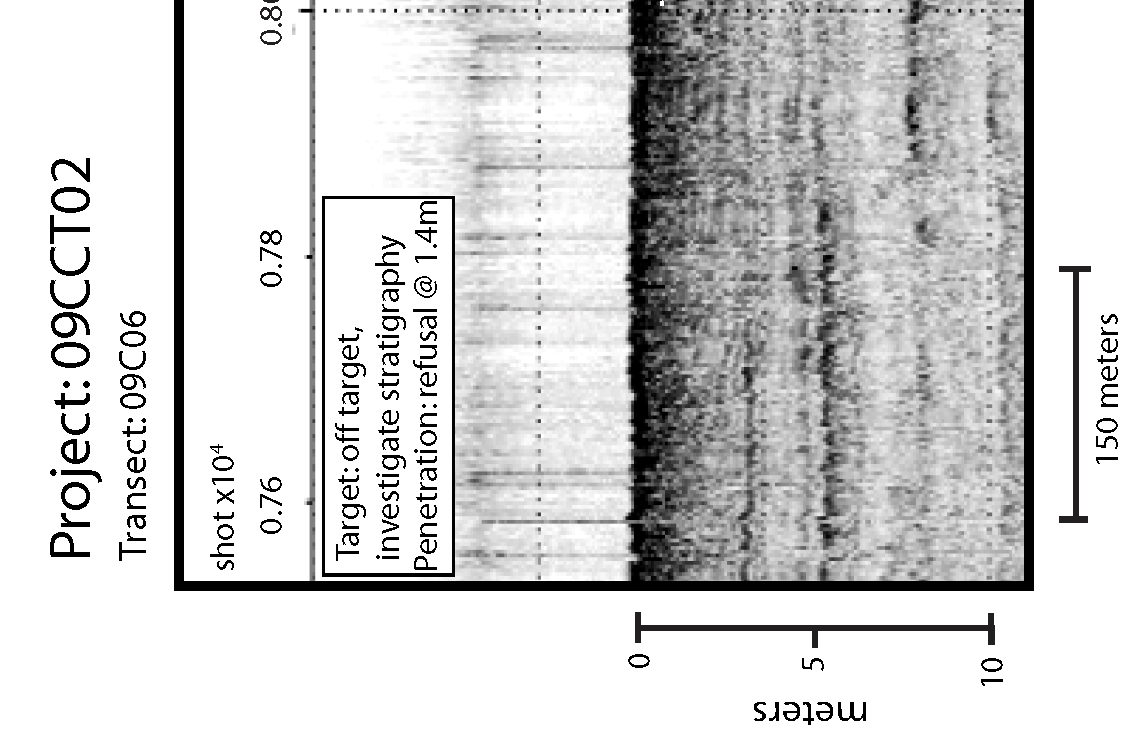

09CCT02_16 Seismic
275

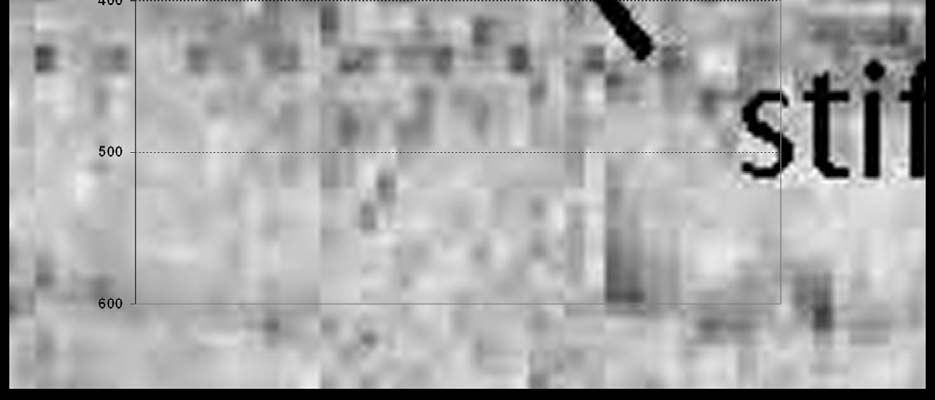

09CCT02_16 Seismic
276
09CCT02_16 Percent Grain Size Distribution Graph

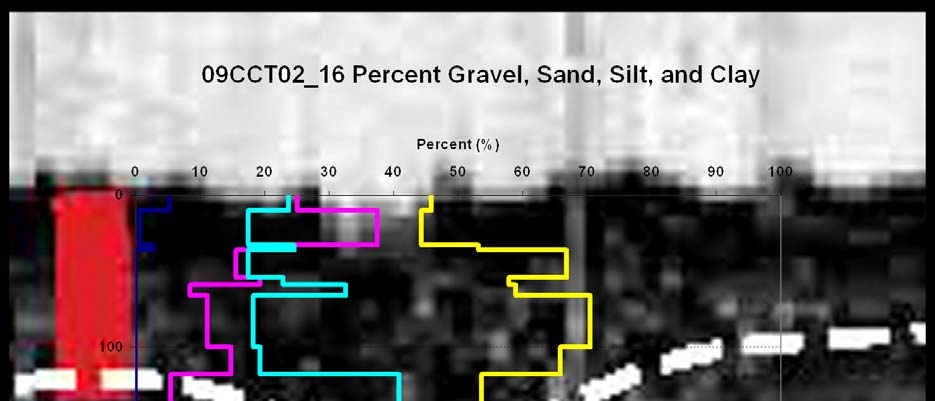

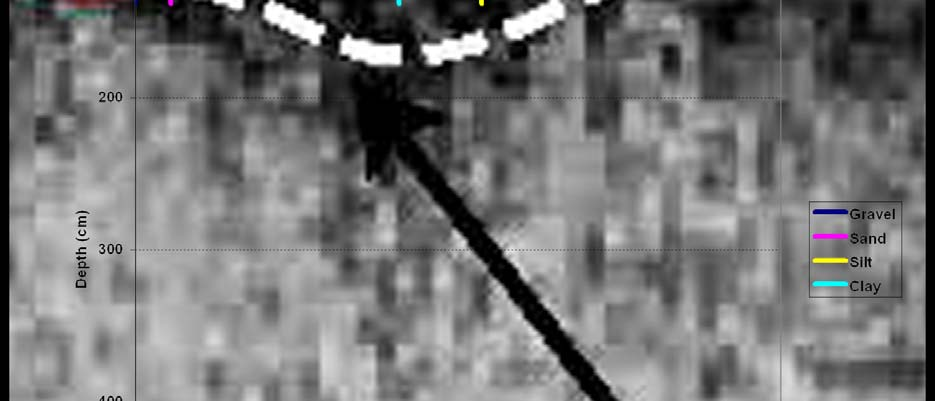

09CCT02_16 Percent Gravel, Sand, Silt, and Clay
0
100
200
300
400
500
600
0
10
20 30 40 50 60 70 80
90
100
Percent (%)
Depth (cm)
Gravel
Sand
Silt
Clay
09CCT02_16 Mean Grain Size Distribution
09CCT02 Mean Grain Size
0
100
200
300
400
500
600
0
50
100
150
200
250
300
350
400
450
Grain Size (μm)
Depth (cm)
Mean Grain Size
277
09CCT02_16 Strength Graph
09CCT02_16 Strength
0
100
200
300
400
500
600
012
34
5
Stength (kg/cm²)
Depth (cm)
Strength
09CCT02_16 Water Content Graph
09CCT02_16 Water Content
0
100
200
300
400
500
600
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
Water Content (g)
Depth (cm)
Water Content
278
09CCT02_16 Grain Size Sand Percent Table
09CCT02_16 Grain Size Sand Percent
Depth (cm)
63-
257
μm
(%)
257-
451
μm
(%)
451-
645
μm
(%)
645-
839
μm
(%)
839-
1033
μm
(%)
1033-
1227
μm
(%)
1227-
1421
μm
(%)
1421-
1615
μm
(%)
1615-
1809
μm
(%)
1809-
2000
μm
(%) Total (%)
5-10 90.61 3.27 2.19 1.54
0.99 0.64
0.40
0.21 0.09 0.05
100
20-25 85.55 10.67 1.11 0.47
0.55
0.55
0.46
0.33 0.20 0.11
100
33-35 87.32 2.92 1.48 1.81
1.91
1.67
1.26
0.88 0.47 0.28
100
45-50 91.65 3.85 1.58 1.09
0.82
0.62
0.35
0.04 0.00 0.00
100
55-59 81.35 7.40 2.23 2.11
2.10
1.79
1.33
0.92 0.49 0.29
100
60-65 71.46 5.85 6.00 5.82
4.46
2.95
1.79
0.94 0.51 0.21
100
70-75 86.30 3.04 2.15 2.18
2.07
1.68
1.21
0.73 0.43 0.21
100
110-115 93.25 1.16 1.05 0.98
0.94 0.87
0.72
0.52 0.33 0.18
100
130-135 47.35 4.19 6.16 9.71
10.26 8.60
6.19
4.14 2.15 1.26
100
09CCT02-16
Depth (cm)
63-
82μm
(%)
82-
101μm
(%)
101-
120μm
(%)
120-
139μm
(%)
139-
158μm
(%)
158-
177μm
(%)
177-
196μm
(%)
196-
215μm
(%)
215-
234μm
(%)
234-
257μm
(%)
Total
(%)
5-10
1.02 1.24 1.82 2.75
4.22 6.54
10.16
15.62 33.22 23.40
100
20-25
4.27 4.45 5.46 6.66
8.09
9.74
11.66
13.86 19.43 16.38
100
33-35
1.26 1.50 2.14 3.09
4.55
6.75
10.11
15.15 32.92 22.52
100
45-50
1.19 1.31 1.73 2.40
3.44
5.17
8.14
13.36 40.46 22.80
100
55-59
2.81
