09CCT02_05 Core Location
134
09CCT02_05 Seismic
135
09CCT02_05 Seismic
136

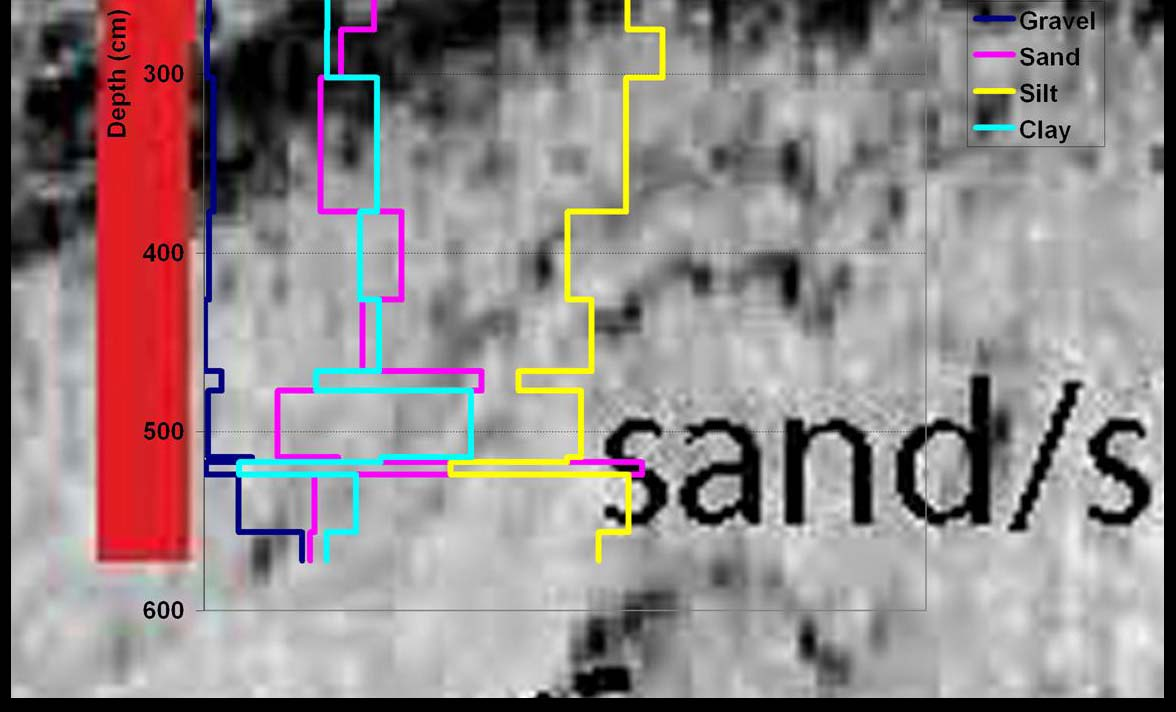

09CCT02_05 Percent Grain Size Distribution Graph

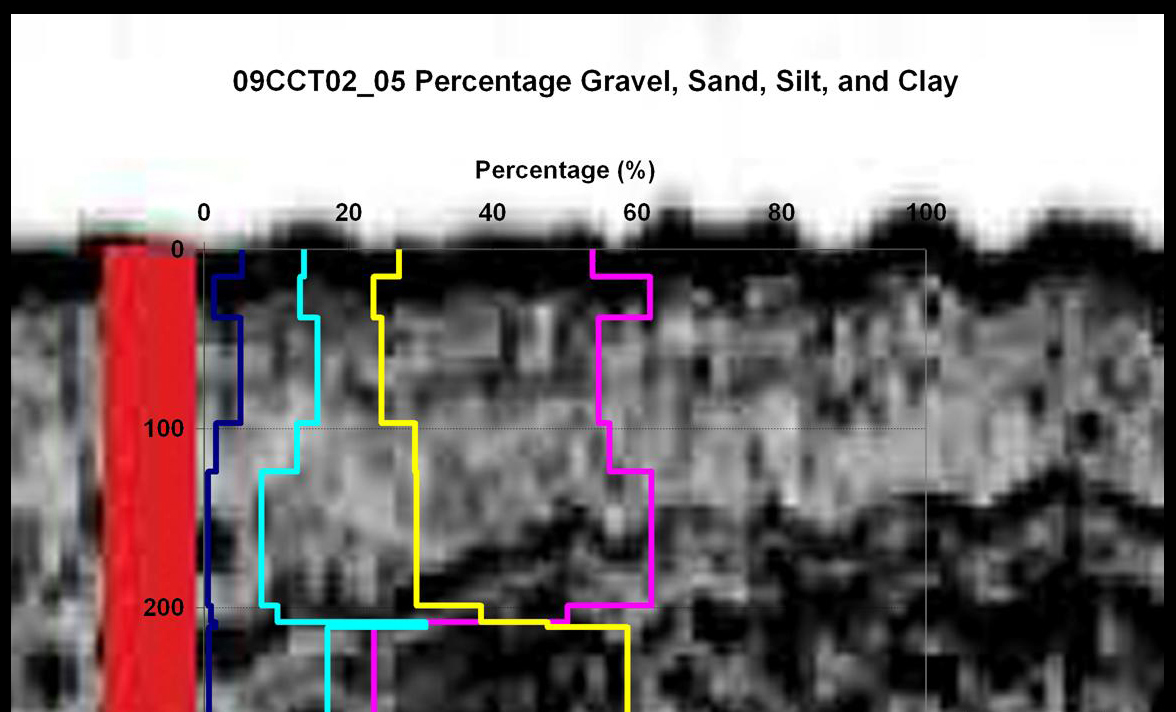

09CCT02_05 Percentage Gravel, Sand, Silt, and Clay
0
100
200
300
400
500
600
0
10
20 30 40 50 60 70 80
90
100
Percentage (%)
Depth (cm)
Gravel
Sand
Silt
Clay
09CCT02_05 Mean Grain Size Distribution Graph
09CCT02_05 Mean Grain Size
0
100
200
300
400
500
600
0
50
100
150
200
250
300
Grain Size (μm)
Depth (cm)
Mean Grain Size
137
09CCT02_05 Strength Graph
09CCT02_05 Strength
0
100
200
300
400
500
600
012
34
5
Stength (kg/cm²)
Depth (cm)
Strength
09CCT02_05 Water Content Graph
09CCT02_05 Water Content
0
100
200
300
400
500
600
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
Water Content (g)
Depth (cm)
Water Content
138
09CCT02_05 Grain Size Sand Percent Table
09CCT02_05 Grain Size Sand Percent
Depth (cm)
63-257
μm (%)
257-
451
μm
(%)
451-
645
μm
(%)
645-
839
μm
(%)
839-
1033
μm
(%)
1033-
1227
μm
(%)
1227-
1421
μm
(%)
1421-
1615
μm
(%)
1615-
1809
μm
(%)
1809-
2000
μm
(%) Total (%)
5-10 87.97 10.23 0.03 0.26
0.41 0.39
0.30
0.21 0.13 0.07
100
30-35 90.13 9.87 0.00 0.00
0.00
0.00
0.00
0.00 0.00 0.00
100
40-45 88.78 11.22 0.00 0.00
0.00
0.00
0.00
0.00 0.00 0.00
100
115-120 97.52 0.65 0.77 0.70
0.32 0.05
0.00
0.00 0.00 0.00
100
169-174 84.35 5.03 3.78 2.86
1.89 1.15
0.64
0.23 0.03 0.04
100
199-204 81.60 5.49 5.18 3.58
2.18 1.23
0.64
0.10 0.00 0.00
100
208-213 93.32 0.67 2.78 2.04
0.94 0.25
0.00
0.00 0.00 0.00
100
259-264 94.60 0.98 1.26 1.24
0.83 0.51
0.29
0.16 0.09 0.04
100
290-295 95.47 0.22 1.45 1.23
0.75 0.41
0.23
0.13 0.08 0.04
100
340-345 92.32 2.90 2.85 1.47
0.45 0.02
0.00
0.00 0.00 0.00
100
405-410 90.35 3.02 2.99 2.05
1.08 0.45
0.05
0.00 0.00 0.00
100
441-446 90.64 0.73 3.40 2.81
1.62 0.72
0.08
0.00 0.00 0.00
100
471-476 100.00 0.00 0.00 0.00
0.00 0.00
0.00
0.00 0.00 0.00
100
491-496 62.89 6.05 7.34 7.39
6.03 4.32
2.83
1.77 0.88 0.51
100
514-516 87.13 6.87 3.89 1.09
0.16 0.19
0.23
0.22 0.15 0.09
100
521-524 100.00 0.00 0.00 0.00
0.00 0.00
0.00
0.00 0.00 0.00
100
541-546 83.54 5.00 3.78 2.52
1.84 1.32
0.91
0.57 0.34 0.17
100
561-566 86.14 4.98 3.75 2.08
1.30 0.74
0.46
0.30 0.16 0.09
100
