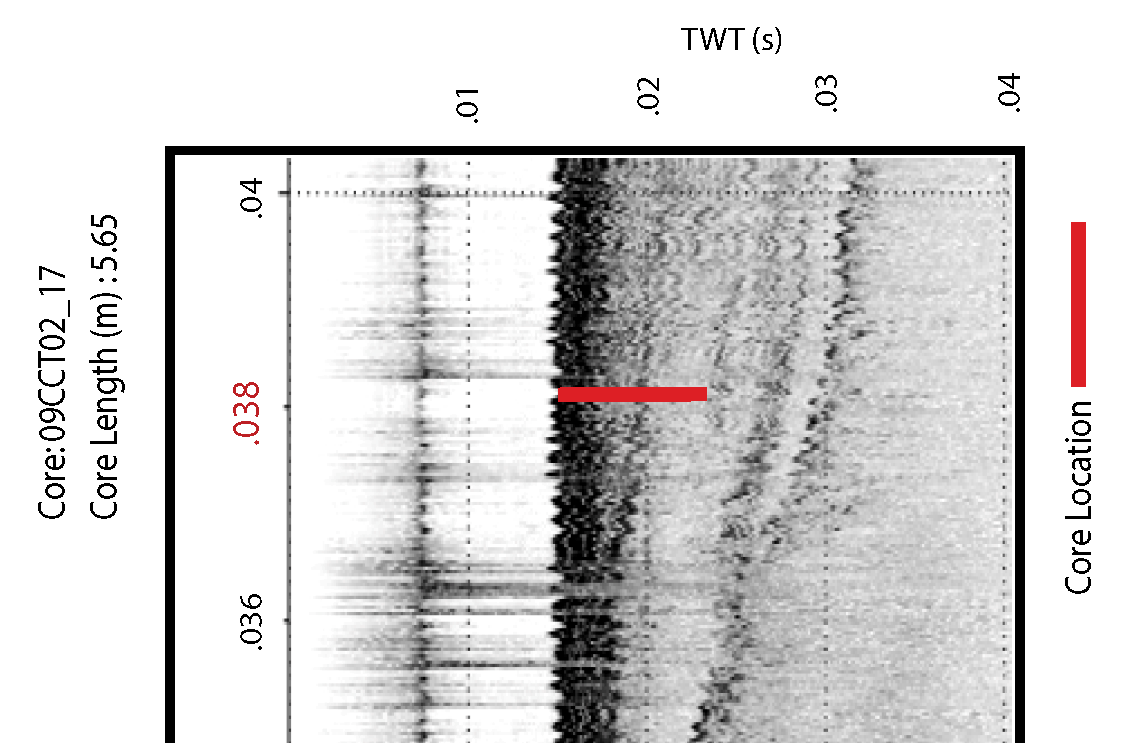

09CCT02_17 Core Location
283

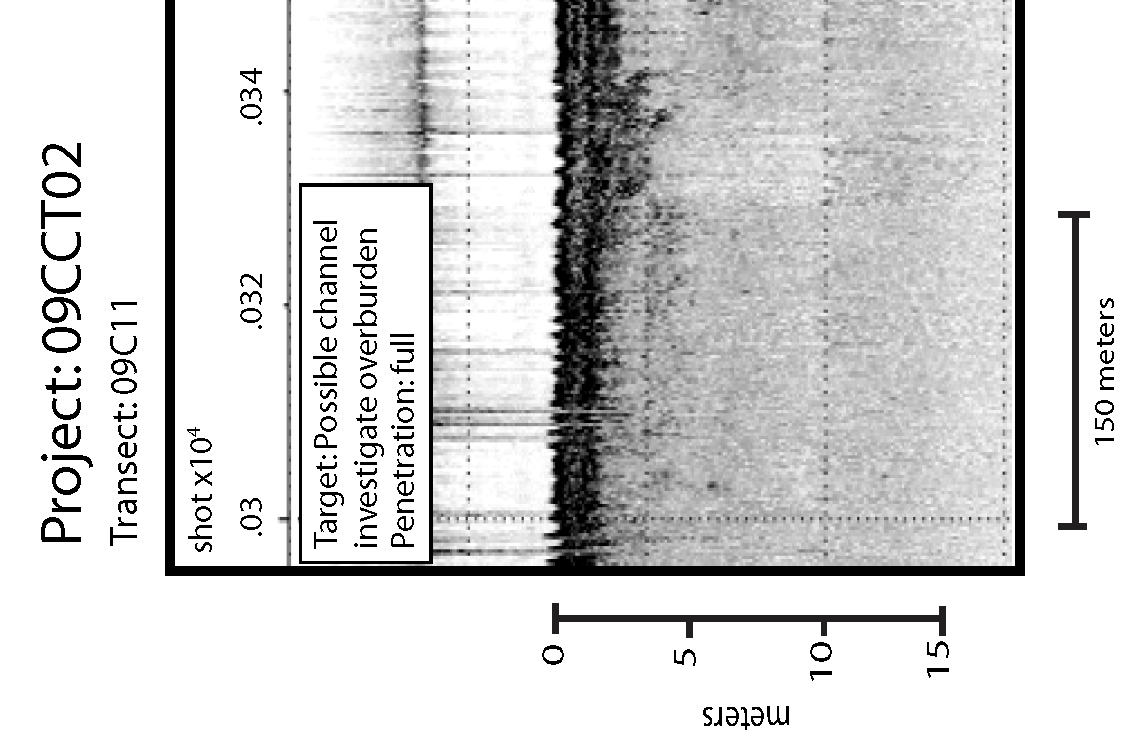

09CCT02_17 Seismic
284
09CCT02_17 Seismic
285
09CCT02_17 Percent Grain Size Distribution Graph

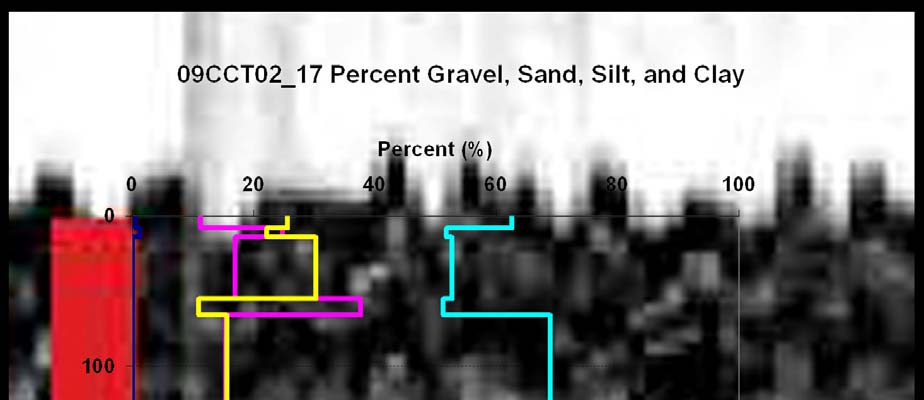

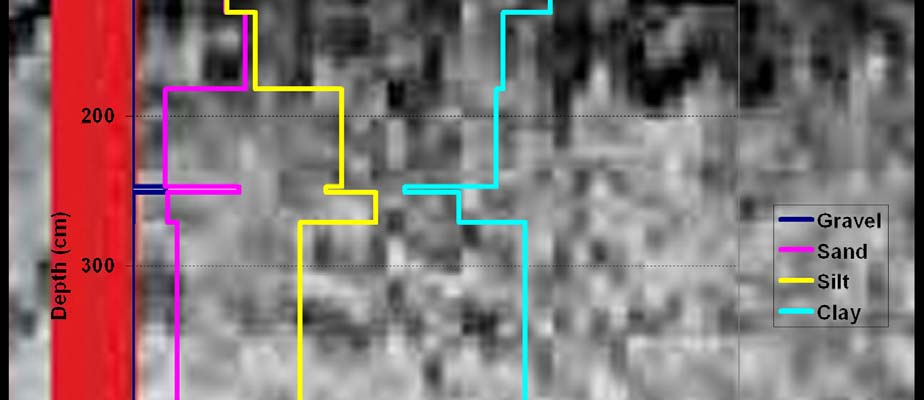

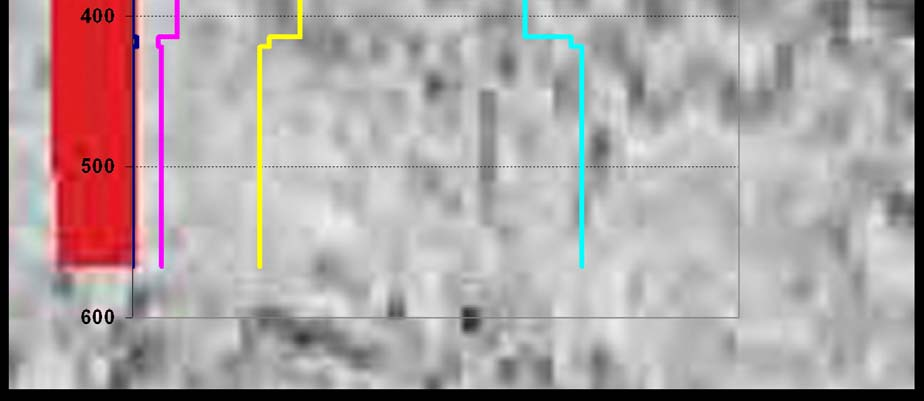

09CCT02_17 Percent Gravel, Sand, Silt, and Clay
0
100
200
300
400
500
600
0
10
20 30 40 50 60 70 80
90
100
Percent (%)
Depth (cm)
Gravel
Sand
Silt
Clay
09CCT02_17 Mean Grain Size Distribution
09CCT02_17 Mean Grain Size
0
100
200
300
400
500
600
0
50
100
150
200
250
300
350
400
450
Grain Size (μm)
Depth (cm)
Mean Grain Size
286
09CCT02_17 Strength Graph
09CCT02_17 Strength
0
100
200
300
400
500
600
012
34
5
Stength (kg/cm²)
Depth (cm)
Strength
09CCT02_17 Water Content
09CCT02_17 Water Content
0
100
200
300
400
500
600
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
Water Content (g)
Depth (cm)
Water Content
287
09CCT02_17 Grain Size Sand Percent
09CCT02_17 Grain Size Sand Percent
Depth (cm)
63-257
μm (%)
257-
451
μm
(%)
451-
645
μm
(%)
645-
839
μm
(%)
839-
1033
μm
(%)
1033-
1227
μm
(%)
1227-
1421
μm
(%)
1421-
1615
μm
(%)
1615-
1809
μm
(%)
1809-
2000
μm
(%) Total (%)
0-5
83.12 8.06 4.92
2.81
1.05 0.05
0.00
0.00 0.00 0.00
100
10-14
79.97 9.10 2.65
2.18
1.92
1.55
1.14
0.80 0.43 0.26
100
40-45
85.96 2.90 4.54
3.28
1.90
0.94
0.42
0.05 0.00 0.00
100
60-65
100.00 0.00 0.00
0.00
0.00
0.00
0.00
0.00 0.00 0.00
100
115-120
88.49 4.22 3.19
1.78
1.07 0.69
0.48
0.08 0.00 0.00
100
141-146
92.70 4.87 2.24
0.19
0.00 0.00
0.00
0.00 0.00 0.00
100
231-236
71.70 13.70 12.08
2.52
0.00 0.00
0.00
0.00 0.00 0.00
100
247-251
87.23 7.09 2.57
2.20
0.84 0.07
0.00
0.00 0.00 0.00
100
266-271 59.21 8.39 13.41
9.76
5.45 2.60
1.07
0.10 0.00 0.00
100
356-361
85.04 2.44 6.02
4.12
2.05 0.32
0.00
0.00 0.00 0.00
100
416-420
82.49 8.55 7.37
1.59
0.00 0.00
0.00
0.00 0.00 0.00
100
500-505
70.19 5.56 5.27
5.13
4.36 3.45
2.60
1.78 1.10 0.56
100
09CCT02-17
Depth (cm)
63-
82μm
(%)
82-
101μm
(%)
101-
120μm
(%)
120-
139μm
(%)
139-
158μm
(%)
158-
177μm
(%)
177-
196μm
(%)
196-
215μm
(%)
215-
234μm
(%)
234-
257μm
(%)
Total
(%)
0-5
1.85 1.78 2.07 2.49
3.19 4.43
6.86
11.78 43.55 21.99
100
10-14
3.49 3.63 4.46 5.50
6.81
8.51
10.81
13.99 24.38 18.44
100
40-45
0.01 0.17 0.42 0.94
1.99
4.01
7.77
14.48 44.24 25.96
100
60-65
0.00 0.00 0.08 0.33
1.71
4.25
8.58
15.97 41.84 27.25
100
115-120
0.01 0.00 0.00 0.00
0.00 0.65
3.61
10.77 58.55 26.42
100
141-146
0.74 0.68 0.85 1.22
2.00 3.60
6.82
13.07 46.17 24.86
100
231-236
2.18 2.02 2.36 2.92
3.79 5.20
7.58
11.94 41.27 20.75
100
247-251
3.75 4.29 5.64 7.30
9.20 11.24
13.18
14.65 15.48 15.27
100
266-271
0.00 0.00 0.46 1.61
2.72 4.73
8.23
14.08 43.82 24.35
100
356-361
0.00 0.13 0.81 1.94
3.38 5.76
9.55
15.36 38.84 24.23
100
416-420
