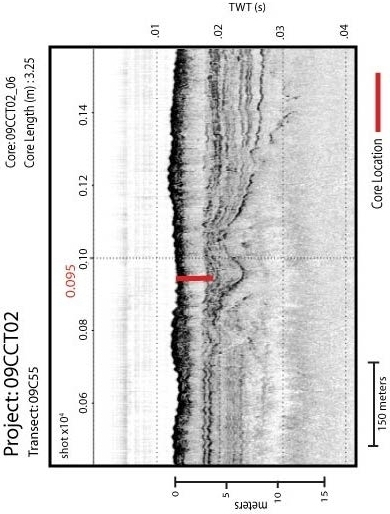

09CCT02_06 Core Location
146
09CCT02_06 Seismic
147
09CCT02_06 Seismic
148

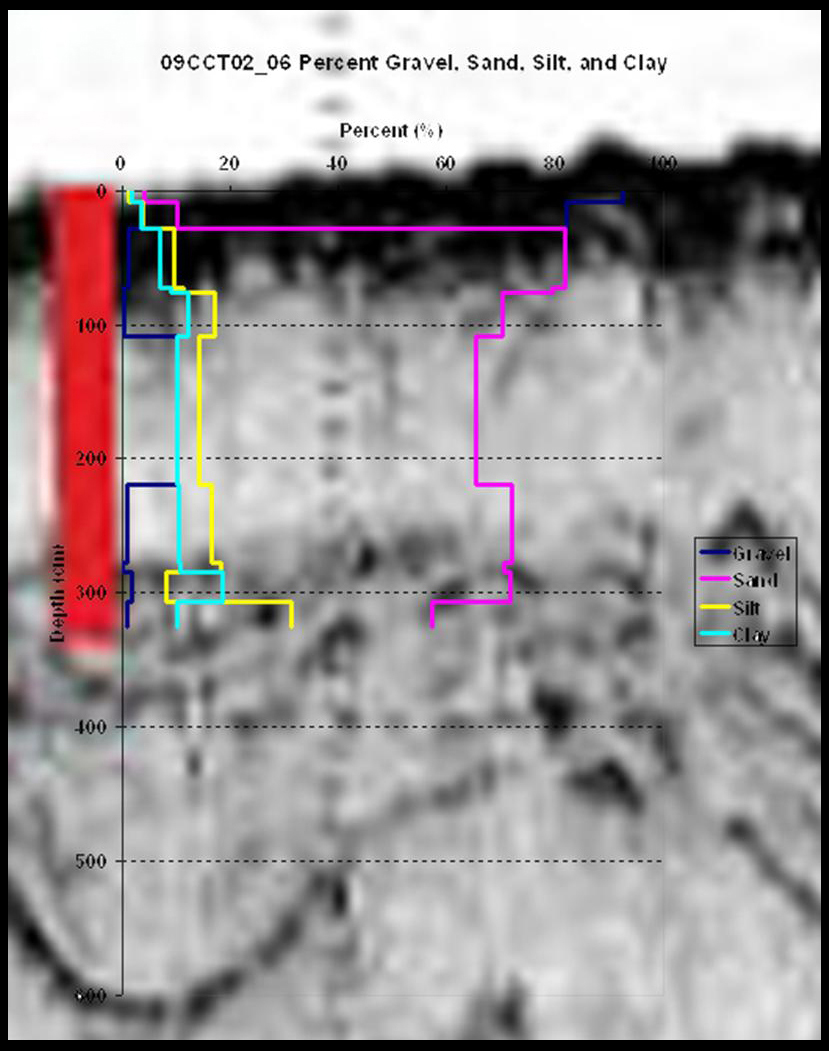

09CCT02_06 Percent Grain Size Distribution Graph
09CCT02_06 Percent Gravel, Sand, Silt, and Clay
0
100
200
300
400
500
600
0
10
20 30 40 50 60 70 80
90
100
Percent (%)
Depth (cm)
Gravel
Sand
Silt
Clay
09CCT02_06 Mean Grain Size Distribution Graph
09CCT02_06 Mean Grain Size
0
100
200
300
400
500
600
0
50
100
150
200
250
300
350
400
450
Grain Size (μm)
Depth (cm)
Mean Grain Size
149
09CCT02_06 Strength Graph
09CCT02_06 Strength
0
100
200
300
400
500
600
012
34
5
Strength (kg/cm²)
Depth (cm)
Strength
09CCT02_06 Water Content Graph
09CCT02_06 Water Content
0
100
200
300
400
500
600
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
Water Content (g)
Depth (cm)
Water Content
150
09CCT02_06 Grain Size Sand Percent
09CCT02_06 Grain Size Sand Percent
Depth (cm)
63-257
μm (%)
257-
451
μm
(%)
451-
645
μm
(%)
645-
839
μm
(%)
839-
1033
μm
(%)
1033-
1227
μm
(%)
1227-
1421
μm
(%)
1421-
1615
μm
(%)
1615-
1809
μm
(%)
1809-
2000
μm
(%) Total (%)
0-5 68.09 21.23 3.46
1.65
1.55 1.38
1.10
0.79 0.48 0.26
100
20-25 76.41 16.64 1.36
0.74
1.13
1.20
1.02
0.77 0.47 0.26
100
50-55 90.85 9.15 0.00
0.00
0.00
0.00
0.00
0.00 0.00 0.00
100
73-75 91.46 8.54 0.00
0.00
0.00
0.00
0.00
0.00 0.00 0.00
100
95-100 91.33 8.67 0.00
0.00
0.00
0.00
0.00
0.00 0.00 0.00
100
169-174 91.37 8.63 0.00
0.00
0.00 0.00
0.00
0.00 0.00 0.00
100
244-249 95.11 4.89 0.00
0.00
0.00 0.00
0.00
0.00 0.00 0.00
100
279-284 97.22 2.78 0.00
0.00
0.00 0.00
0.00
0.00 0.00 0.00
100
299-304 98.18 1.82 0.00
0.00
0.00 0.00
0.00
0.00 0.00 0.00
100
314-319 99.08 0.92 0.00
0.00
0.00 0.00
0.00
0.00 0.00 0.00
100
09CCT02-06
Depth (cm)
63-
82μm
(%)
82-
101μm
(%)
101-
120μm
(%)
120-
139μm
(%)
139-
158μm
(%)
158-
177μm
(%)
177-
196μm
(%)
196-
215μm
(%)
215-
234μm
(%)
234-
257μm
(%) Total (%)
0-5
8.92 8.69 9.91 11.05
11.95 12.39
12.08
10.78 5.79 8.45
100
20-25
7.30 7.40 8.74 10.13
11.42
12.40
12.75
12.12 7.50 10.25
100
50-55
5.71 6.46 8.32 10.41
12.48
14.14
14.75
13.51 4.39 9.82
100
73-75
5.42 6.20 8.06 10.18
12.34
14.14
14.94
13.87 4.62 10.22
100
95-100
5.21 5.83 7.46 9.35
11.35
13.19
14.40
14.27 7.04 11.91
100
169-174
4.96 5.54 7.11 8.94
10.93 12.84
14.26
14.52 8.22 12.69
100
244-249
3.58 4.28 5.78 7.66
9.87 12.24
14.44
15.76 11.28 15.10
100
279-284
2.63 3.37 4.78 6.62
8.92 11.58
