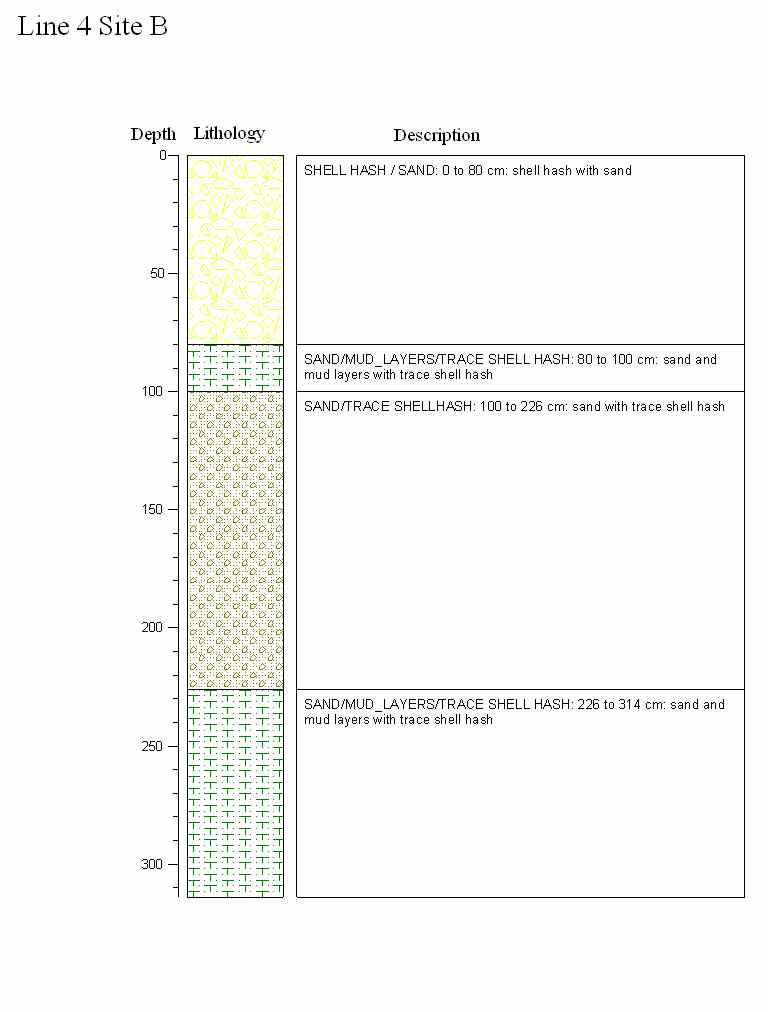

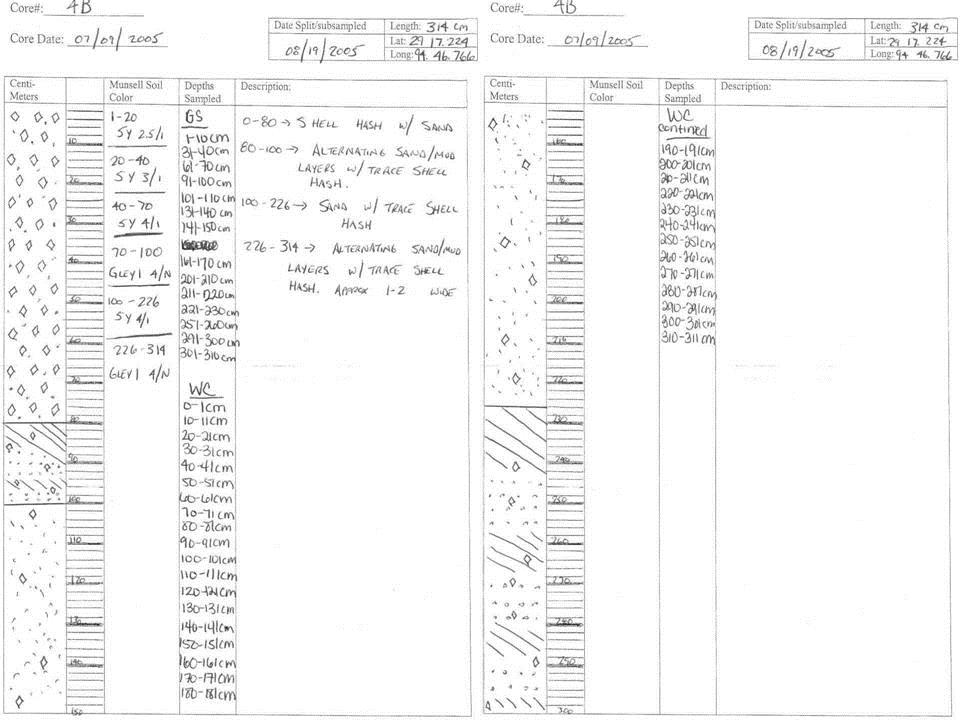

Core 4B was taken at a water depth of 6.1m (20ft) (Table1) and had a total length of 314cm (123.6in) (Figures 23 & 31-34). A

total of 14 grain size samples were taken at depths of 1-10cm (0.4-3.9in), 31-40cm (12.2-15.8in), 61-70cm (24-27.6in), 91-100cm

(35.8-39.4in), 101-110cm (39.8-43.3in), 131-140cm (51.6-55.1in), 141-150cm (55.5-59.1in), 161-170cm (63.4-66.9in), 201-210cm

(79.1-82.7in), 211-220cm (83-86.6in), 221-230cm (87-90.6in), 251-260cm (98.8-102.4in), 291-300cm (114.6-118.1in) and 301-

310cm (118.5-122in). The top of this core down to approximately 80cm (31.5in) contained a percent sand decreasing from 87% to

38%, and a mean grain size ranging from 0.1149mm (3.1phi) to 0.1003mm (3.3phi). From depth 80cm (35.1in) to 100cm (39.4in)

percent sand remained below 40%. From the depth of 100cm (29.4in) to 140cm (55.1in) there was an increase in percent sand from

40 to 84% with mean grain size ranging from 0.0867mm (3.5phi) to 0.0968mm (3.4phi). There was a decrease in percent sand from

84% to 21% between the depths of 140 to 260cm (55.1 to 102.4in) and a decrease in mean grain size ranging from 0.0968mm (3.4phi)

to 0.0217mm (5.5phi). From 260cm (102.4in) to the bottom of the core percent sand remained below 30%.

Sand and shell weights are shown in Table 22. Percent sand, silt and clay are shown in Table 23. Median grain size, mean

grain size, skewness and sorting index are shown in Table 26. Graphs of the results are located in Figures 35-38.

It was determined that core 4B had approximately 193cm (76in) of sediment contained at least 50% sand, of which 72cm

(28.3in) was located shallower than 1m (39.4in) depth.

0.5m

1.0m

1.5m

2.0m

2.5m

0.5m

1.0m

1.5m

2.0m

2.5m

0.5m

1.0m

1.5m

2.0m

Core ID

Sample Depth (cm)

shell weight (g)

200+ weight (g)

200-230 weight (g)

overall sand weight (g)

1-10

3.14

87.44

2.56

87.44

31-40

7.45

94.12

2.69

94.12

61-70

9.57

97.40

4.80

97.40

71-80

1.41

33.96

4.73

33.96

91-100

0.13

24.08

3.86

24.08

101-110

0.19

74.51

7.26

74.51

131-140

0.36

77.84

5.88

77.84

161-170

0.86

96.67

5.69

96.67

201-210

0.65

97.71

7.10

97.71

211-220

0.34

78.54

6.20

78.54

221-230

0.01

28.27

3.85

28.27

251-260

0.02

9.84

2.47

9.84

291-300

0.06

14.70

4.63

14.70

301-310

0.01

14.02

1.52

14.02

Table 1: Sand and Shell weights for core 4B

Core ID

Sample Depth (cm)

% shell

% sand

%silt

%clay

1-10

3.13

87.21

6.84

2.82

31-40

6.68

84.44

4.41

4.46

61-70

7.53

76.65

9.57

6.25

71-80

1.56

37.62

25.06

35.76

91-100

0.21

38.65

26.20

34.94

101-110

0.19

75.32

18.83

5.66

131-140

0.39

84.22

11.79

3.60

161-170

0.68

76.33

17.41

5.58

201-210

0.47

71.03

15.42

13.08

211-220

0.27

61.25

19.53

18.95

221-230

0.02

48.21

26.43

25.33

251-260

0.04

21.38

38.43

40.15

291-300

0.12

28.23

42.22

29.43

301-310

0.02

30.59

30.38

39.01

Table 2: Percent Shell, Sand, Silt and Clay for core 4B

Core ID

Sample

Depth

(cm)

N10/

2.0mm

Screen

Sample

Weight

(g)

N14/

1.40mm

Screen

Sample

Weight

(g)

N18/

1.00mm

Screen

Sample

Weight

(g)

N25/

710μm

Screen

Sample

Weight

(g)

N35/

500μm

Screen

Sample

Weight

(g)

N45/

355μm

Screen

Sample

Weight

(g)

N60/

250μm

Screen

Sample

Weight

(g)

N80/

180μm

Screen

Sample

Weight

(g)

N125/

125μm

Screen

Sample

Weight

(g)

N170/

90μm

Screen

Sample

Weight

(g)

N200/

75μm

Screen

Sample

Weight

(g)

N230/

63μm

Screen

Sample

Weight

(g)

CATCH

Pan

1-10

0.81

0.69

0.61

0.28

0.14

0.16

0.96

16.73

58.75

10.84

2.56

0.52

31-40

2.5

2.18

1.37

0.80

0.40

0.20

0.44

0.93

31.33

54.56

6.86

2.69

0.75

61-70

5.3

2.01

1.13

0.65

0.28

0.20

0.24

0.65

16.43

67.27

12.81

4.80

2.72

71-80

1.41

33.96

4.73

2.13

91-100

0.13

24.08

3.86

2.59

101-110

0.04

0.02

0.03

0.08

0.12

0.38

6.00

52.64

15.37

7.26

5.15

131-140

0.15

0.07

0.05

0.03

0.01

0.05

0.09

0.33

11.22

52.98

13.22

5.88

1.95

161-170

0.09

0.05

0.15

0.13

0.17

0.27

0.35

0.93

22.21

62.07

11.11

5.69

4.45

201-210

0.01

0.10

0.06

0.09

0.12

0.27

0.52

0.76

27.51

60.44

8.48

7.10

7.05

211-220

0.03

0.02

0.04

0.03

0.05

0.17

0.22

0.44

8.21

53.73

15.94

6.20

3.39

221-230

0.01

28.27

3.85

1.82

251-260

0.02

9.84

2.47

1.49

291-300

0.06

14.70

4.63

2.58

301-310

0.01

14.02

1.52

1.23

Table 3: RO-TAP data for core 4B
