Aptim Environmental & Infrastructure, LLC
6401 Congress Avenue, Suite 140
Boca Raton, Florida 33487
Phone # 1-561-391-8102
Legend for Geotechnical Data
Grain Size Scale for Sediments
Proportional Definition of Descriptive Terms
Descriptive Term
Range of Proportions
Sandy, gravelly, etc.
35 % to 50 %
Some
20 % to 35 %
Little
10 % to 20 %
Trace
1 % to 10 %
Consistency of Cohesive Soils
Description
Consistency
Index
Approximate
Undrained Shear
Strength (kPa)
Field Identification
Hard
Over 300
Indented with difficulty by thumbnail, brittle.
Very Stiff
>1
150-300
Readily indented by thumbnail, still very tough.
Stiff
0.75-1
75-150
Readily indented by thumb but penetrated only with difficulty. Cannot
be moulded in the fingers.
Firm
0.5-0.75
40-75
Can be penetrated several centimeters by thumb with moderate effort
and moulded in fingers by strong pressure.
Soft
< 0.5
20-40
Easily penetrated several centimeters by thumb, easily moulded.
Very Soft
Less than 20
Easily penetrated several centimeters by fist, exudes between fingers
when squeezed in fist.
Source: Engineering Properties of Soils and Rocks, Fourth Edition by Fred G. Bell
USCS Classifications
Refers to the Army Corps of Engineers Unified Soils Classification System. Class types
are defined primarily by grain size, sorting and percent of material passing the #200 sieve.
Classification of materials on the core logs based on visual field examinations are identified on
the core logs under the Classification of Materials Description. Classifications based on
laboratory sieve analyses are identified on the core logs in the Legend and under Remarks.
Note: Information is after ACOE Atlantic Division Manual # 1110-1-1 titled
Engineering and Design
Geotechnical Manual for Surface and Subsurface Investigations

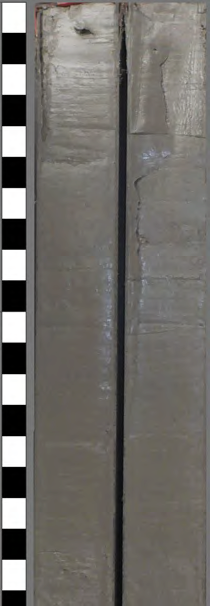

LEAN CLAY, very soft, trace shell hash, trace silt, silt
distributed in laminae, shell hash laminae @ 1.2' and
2.8', dark grayish brown (2.5Y-4/2), (CL).
Clayey SILT, trace sand, fine grained, quartz, trace
shell hash, clay increases with depth in layer, 1.0"
sandy pocket with shell hash @ 5.7', dark gray
(2.5Y-4/1), (ML).
Sandy SILT, trace clay, trace shell hash, sand
component is very fine grained quartz, clay
interbedded throughout layer, color is mottled
dark gray (2.5Y-4/1) and dark greenish gray
(5GY-4/1),(ML).

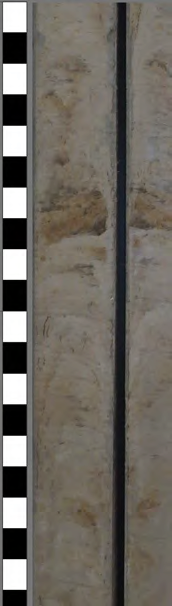

FAT CLAY, hard, little sand, very fine grained, quartz,
trace organics, trace silt, trace whole shell, sand
increases with depth in layer, oxidation throughout
layer, 1.5" organic pocket @ 8.8', 0.25" whole bivalve
@ 9.8', light olive brown (2.5Y-5/3), (CH).
Sandy LEAN CLAY, firm, trace silt, sand component is
very fine grained quartz, sand decreases with depth in
layer, 1.5" oxidized pocket @ 10.7', 0.5" oxidized
pocket @ 11.6', brown (10YR-5/3), (CL).

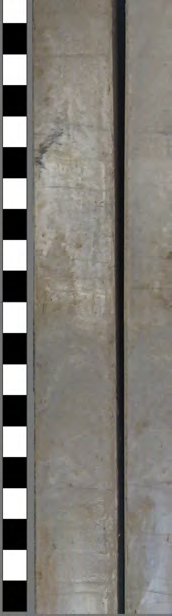

FAT CLAY, stiff, little silt, trace sand, very fine
grained, quartz, sand decreases with depth in layer,
oxidation throughout layer, grayish brown (2.5Y-5/2),
(CH).
Clayey SAND, very fine grained, quartz, trace silt, clay
interbedded throughout layer, clay decreases with
depth in layer, color is mottled grayish brown
(2.5Y-5/2) and olive brown (2.5Y-4/4), (SC).
SAND, fine grained, quartz, trace clay, trace silt, 0.5"
clay pockets @ 16.7' and 17.1', dark yellowish brown
(10YR-4/4), (SP).
FAT CLAY, stiff, trace sand, very fine grained, quartz,
trace silt, 0.5" sand pocket @ 17.5', possible
bioturbation @ 17.5', Bit sample from 17.6' to 17.8',
olive brown (2.5Y-4/3), (CH).
No recovery.
End of Boring
-29.0
-31.0
-33.1
-34.4
-38.0
-40.2
-41.0
-41.8
-42.3
-43.8
4.5
6.5
8.6
9.9
13.5
15.7
16.5
17.3
17.8
19.3
T1
T2
Sample #T1, Depth = 9.0'
Ave. Field Vane (tsf): 0.56
Sample #T2, Depth = 15.1'
Ave. Field Vane (tsf): 0.15
3. DRILLING AGENCY
2. BORING DESIGNATION
0
0.0 Ft.
LOCATION COORDINATES (ft)
TX GLO Region 1 Recon Geotechnical Sand Search
Jefferson, Chambers, Galveston and Brazoria Co.
15. DATE BORING
0.0
17.8 Ft.
SM
10. COORDINATE SYSTEM/DATUM
11. MANUFACTURER'S DESIGNATION OF DRILL
DISTURBED
UNDISTURBED (UD)
18. SIGNATURE AND TITLE OF INSPECTOR
14. ELEVATION GROUND WATER
Texas State Plane South
COMPLETED
19.3 Ft.
STARTED
3.0 In.
X = 3,557,233 Y = 13,801,297
-24.5
VERTICAL
VERTICAL
INCLINED
0.0 Ft.
8. TOTAL DEPTH OF BORING
TXGLO1-VC-23-007
AUTO HAMMER
MANUAL HAMMER
APTIM
6. THICKNESS OF OVERBURDEN
CONTRACTOR FILE NO.
7. DEPTH DRILLED INTO ROCK
10-06-23
-24.5 Ft.
DIVISION
INSTALLATION
16. ELEVATION TOP OF BORING
17. TOTAL RECOVERY FOR BORING
NAVD88
2
APTIM SEAS VC-700 Vibracore
9. SIZE AND TYPE OF BIT
12. TOTAL SAMPLES
13. TOTAL NUMBER CORE BOXES
DEG. FROM
VERTICAL
5. DIRECTION OF BORING
BEARING
4. NAME OF DRILLER
HORIZONTAL
APTIM
DRILLING LOG
NAD 1983
1. PROJECT
10-06-23
%
REC.
Boring Designation
REMARKS
The USCS classification system defines silt as the
percent passing the No.200 (0.075 mm) sieve
SHEET 1
BOX OR
SAMPLE
CLASSIFICATION OF MATERIALS
Depths and elevations based on measured values
ELEV.
(ft)
LEGEND
DEPTH
(ft)
0
5
10
15
20
25
TXGLO1-VC-23-007
JUN 04
SAJ FORM 1836
OF 1 SHEETS
REGION1_RECON_GEOTECH.GPJ 3/25/24
O'
5'
10'
1'
6'
11'
2'
7'
12'
.:
r
i,
1
l'
3'
8'
13
'
4'
9'
14
'
5'
15'
15'
16'
17'
l
-
,
•
I
18'
20'
Texas General
Land Office
Texas GLO
Region 1
Geotechnical
Reconnaissance
Survey
TXGLOl-VC-2
3-007
Date Collected: 10/6/23
Top Elev.(ft NAVD88): -
24.5
Bottom Elev.(ft NAVD88): -42.3
Core Length (ft): 17.8
>
APTIM
6401 Congress Avenue, Suite 140
Boca Raton, FL 33487
(561)391-8102
CORE ID
SAMPLE DEPTH
(ft)
TORVANE
(kg/cm²)
TORVANE
(tsf)
TORVANE
(kpa)
DESCRIPTION
1
TXGLO1-VC-23-001
3.0
1.5
0.15
147.10
Stiff
6.0
1.0
0.10
98.07
Stiff
10.3
4.5
0.46
441.30
Hard
13.4
5.5
0.56
539.37
Hard
16.3
2.5
0.26
245.17
Very Stiff
9.1
3.0
0.31
294.20
Very Stiff
11.9
5.0
0.51
490.33
Hard
14.1
6.0
0.61
588.40
Hard
4.8
6.0
0.61
588.40
Hard
7.5
5.0
0.51
490.33
Hard
13.5
5.5
0.56
539.37
Hard
16.5
3.5
0.36
343.23
Hard
TXGLO1-VC-23-006
9.0
5.5
0.56
539.37
Hard
15.1
1.5
0.15
147.10
Stiff
7.1
5.5
0.56
539.37
Hard
8.1
9.0
0.92
882.60
Hard
