09CCT02_22 Core Location
343
09CCT02_22 Seismic
344
09CCT02_22 Seismic
345

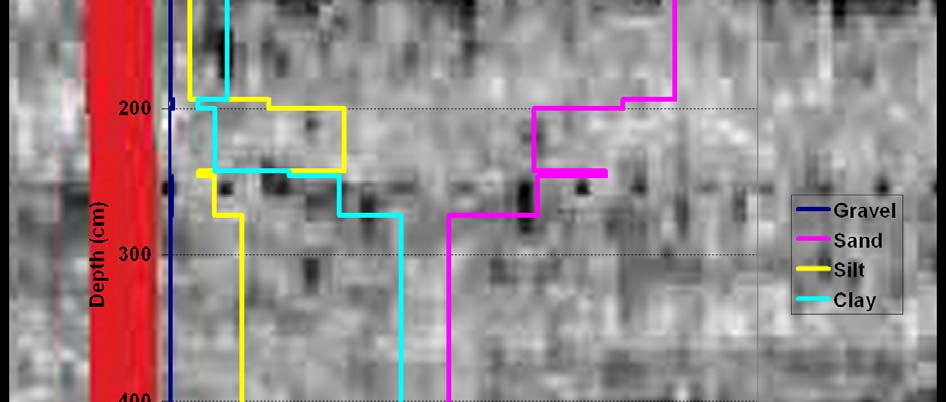

09CCT02_22 Percent Grain Size Distribution Graph
09CCT02_22 Percent Gravel, Sand, Silt, and Clay
0
100
200
300
400
500
600
0
10
20 30 40 50 60 70 80
90
100
Percent (%)
Depth (cm)
Gravel
Sand
Silt
Clay
09CCT02_22 Mean Grain Size Distribution
09CCT02_22 Mean Grain Size
0
100
200
300
400
500
600
0
50
100
150
200
250
300
350
400
450
Grain Size (μm)
Depth (cm)
Mean Grain Size
346
09CCT02_22 Strength Graph
09CCT02_22 Strength
0
100
200
300
400
500
600
012
34
5
Stength (kg/cm²)
Depth (cm)
Strength
09CCT02_22 Water Content Graph
09CCT02_22 Water Content
0
100
200
300
400
500
600
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
Water Content (g)
Depth (cm)
Water Content
347
09CCT02_22 Grain Size Sand Percent Table
09CCT02_22 Grain Size Sand Percent
Depth (cm)
63-
257
μm
(%)
257-
451
μm
(%)
451-
645
μm
(%)
645-
839
μm
(%)
839-
1033
μm
(%)
1033-
1227
μm
(%)
1227-
1421
μm
(%)
1421-
1615
μm
(%)
1615-
1809
μm
(%)
1809-
2000
μm
(%) Total (%)
10-15 49.60 32.09 8.44 3.63
2.38
1.64
1.07
0.65 0.34 0.17
100
45-50 69.62 28.65 1.73 0.00
0.00
0.00
0.00
0.00 0.00 0.00
100
65-70 72.46 26.32 1.21 0.00
0.00
0.00
0.00
0.00 0.00 0.00
100
90-95 64.81 30.34 3.65 0.20
0.17
0.25
0.24
0.18 0.10 0.06
100
105-110 64.51 29.12 3.55 0.52
0.55 0.60
0.50
0.36 0.19 0.11
100
167-172 75.06 22.22 1.74 0.16
0.22 0.22
0.17
0.11 0.07 0.03
100
197-202 77.31 16.92 1.75 0.93
0.99 0.83
0.59
0.38 0.19 0.11
100
237-242 86.54 10.93 0.89 0.49
0.47 0.34
0.20
0.09 0.03 0.02
100
243-246 79.57 15.11 1.77 0.90
0.86 0.71
0.50
0.32 0.16 0.10
100
262-267 82.72 11.70 0.82 0.80
1.12 1.04
0.79
0.55 0.29 0.17
100
348-353 88.11 8.56 0.87 0.62
0.61 0.50
0.37
0.20 0.11 0.06
100
469-474 89.88 4.03 1.35 1.37
1.16 0.87
0.61
0.38 0.23 0.11
100
514-519 87.80 3.98 2.42 2.48
1.81 1.04
0.40
0.06 0.00 0.00
100
544-549 95.30 4.70 0.00 0.00
0.00 0.00
0.00
0.00 0.00 0.00
100
559-564 92.57 5.66 0.21 0.47
0.43 0.29
0.18
0.10 0.05 0.03
100
