09CCT02_25 Core Location
373
09CCT02_25 Seismic
374
09CCT02_25 Seismic
375
09CCT02_25 Percent Grain Size Distribution Graph

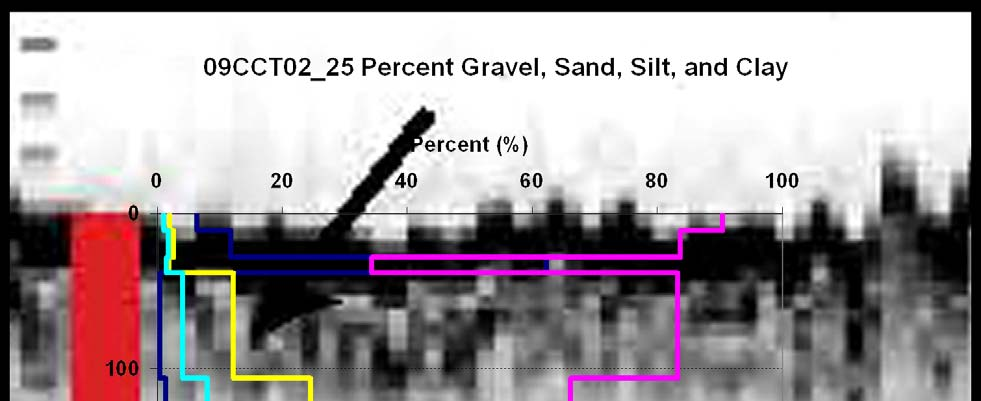

09CCT02_25 Percent Gravel, Sand, Silt, and Clay
0
100
200
300
400
500
600
0
10
20
30
40 50 60 70
8090
100
Percent (%)
Depth (cm)

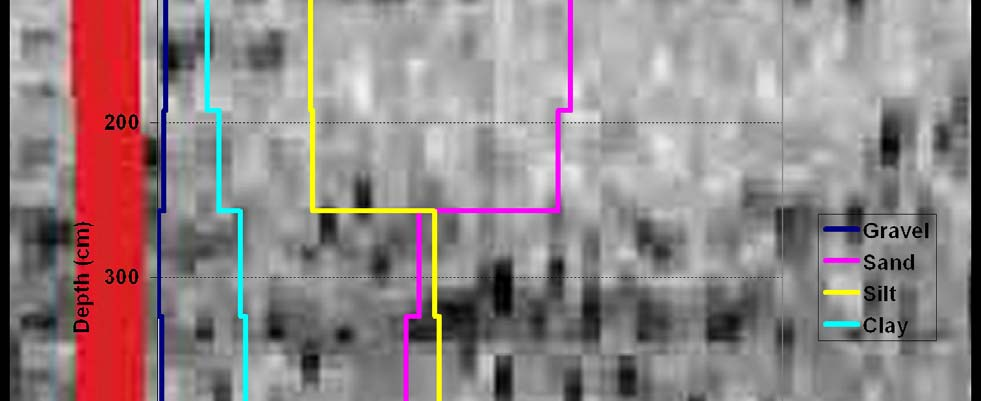

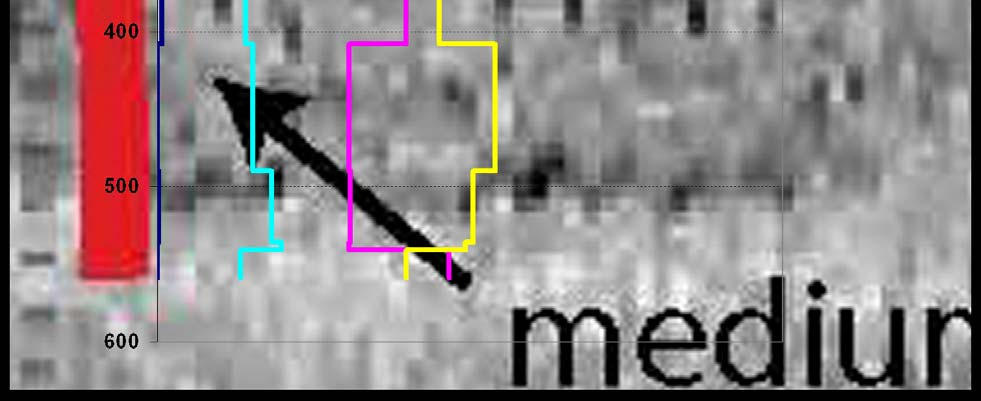

Gravel
Sand
Silt
Clay
09CCT02_25 Mean Grain Size Distribution
09CCT02_25 Mean Grain Size
0
100
200
300
400
500
600
0
50
100
150
200
250
300
350
400
450
Grain Size (μm)
Depth (cm)
Mean Grain Size
376
09CCT02_25 Strength Graph
09CCT02_25 Strength
0
100
200
300
400
500
600
012
34
5
Stength (kg/cm²)
Depth (cm)
Strength
09CCT02_25 Water Content Graph
09CCT02_25 Water Content
0
100
200
300
400
500
600
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
Water Content (g)
Depth (cm)
Water Content
377
09CCT02_25 Grain Size Sand Percent Table
09CCT02_25 Grain Size Sand Percent
Depth (cm)
63-
257
μm
(%)
257-
451
μm
(%)
451-
645
μm
(%)
645-
839
μm
(%)
839-
1033
μm
(%)
1033-
1227
μm
(%)
1227-
1421
μm
(%)
1421-
1615
μm
(%)
1615-
1809
μm
(%)
1809-
2000
μm
(%) Total (%)
5-10 67.68 29.22 2.73 0.05
0.04 0.08
0.08
0.06 0.04 0.02
100
20-25 68.68 26.54 2.23 0.38
0.52
0.58
0.48
0.33 0.17 0.09
100
30-35 64.27 24.20 4.37 1.98
1.65
1.33
0.97
0.65 0.37 0.20
100
95-100 86.45 13.43 0.12 0.00
0.00
0.00
0.00
0.00 0.00 0.00
100
166-171 87.05 11.01 0.26 0.26
0.38 0.36
0.29
0.21 0.11 0.07
100
251-256 88.79 9.92 0.41 0.20
0.21 0.17
0.13
0.08 0.05 0.03
100
197-202 90.19 6.76 0.60 0.49
0.55 0.49
0.39
0.27 0.16 0.09
100
292-297 91.99 3.70 0.87 0.90
0.79 0.64
0.48
0.34 0.18 0.11
100
373-378 92.06 4.83 1.14 0.80
0.55 0.37
0.14
0.06 0.04 0.02
100
413-418 88.43 6.55 0.88 0.76
0.86 0.83
0.69
0.52 0.30 0.18
100
436-438 91.63 6.96 0.22 0.32
0.31 0.23
0.15
0.10 0.05 0.03
100
448-453 92.58 7.42 0.00 0.00
0.00 0.00
0.00
0.00 0.00 0.00
100
