87

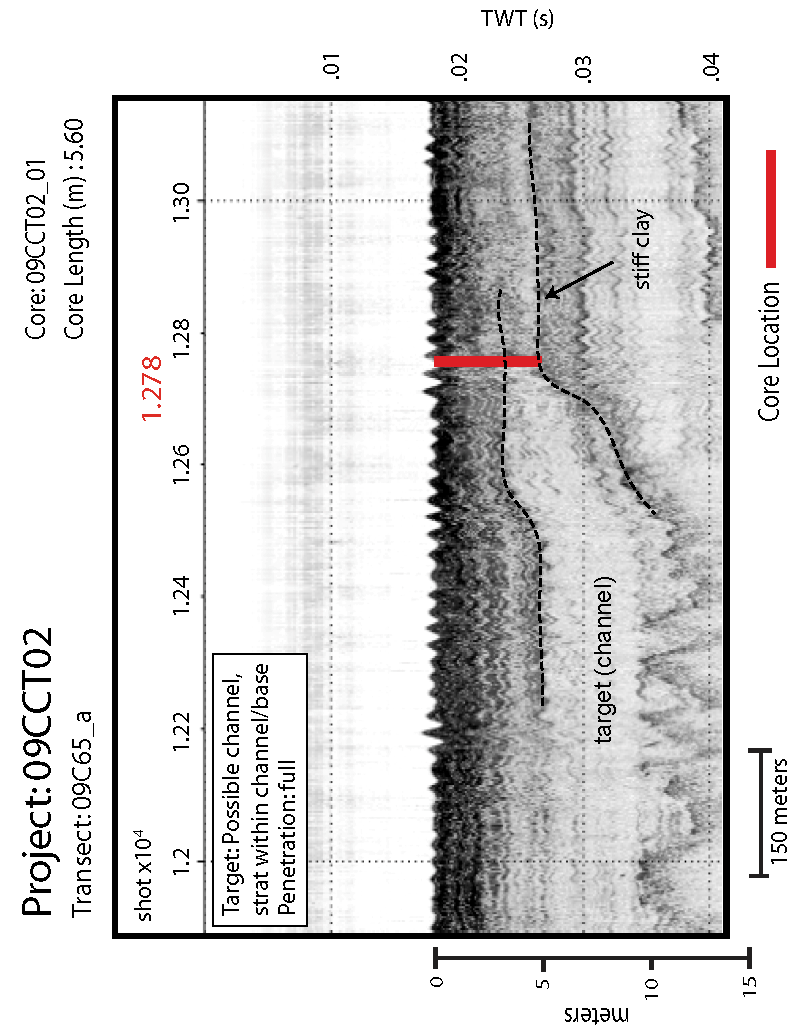

09CCT02_01 Core Location
88
09CCT02_01 Seismic
89
09CCT02_01 Seismic
90
09CCT02_01 Percent Grain Size Distribution

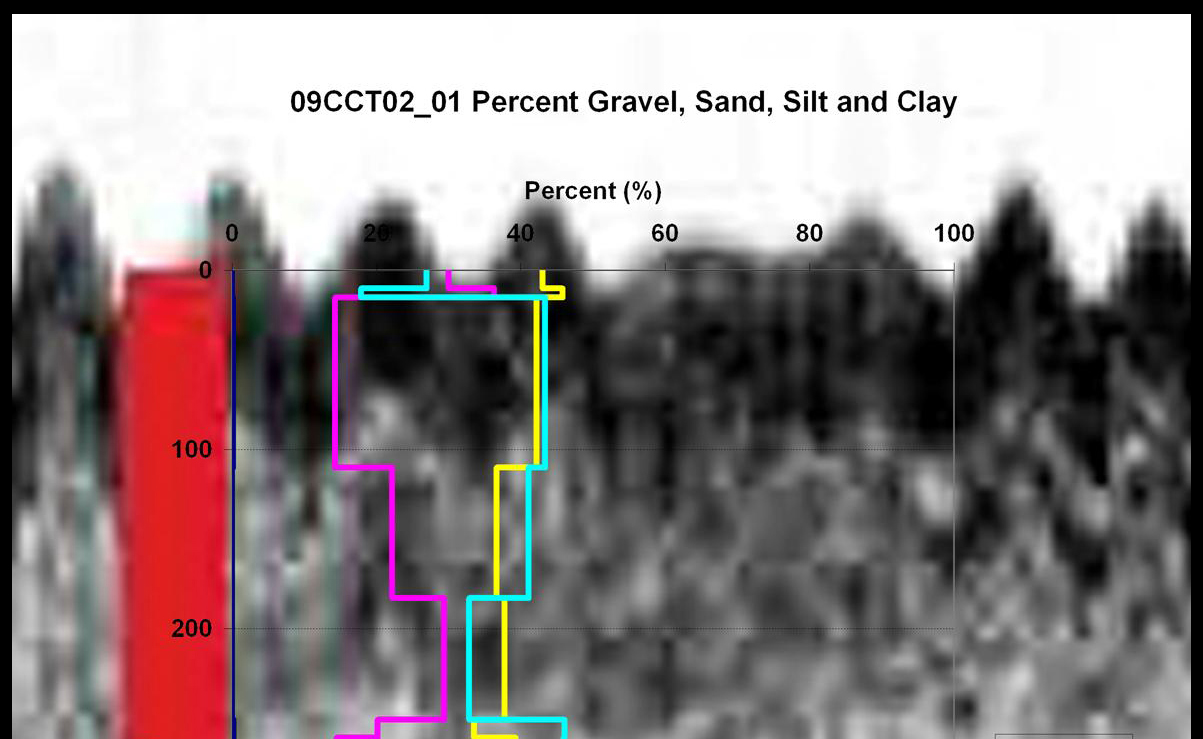

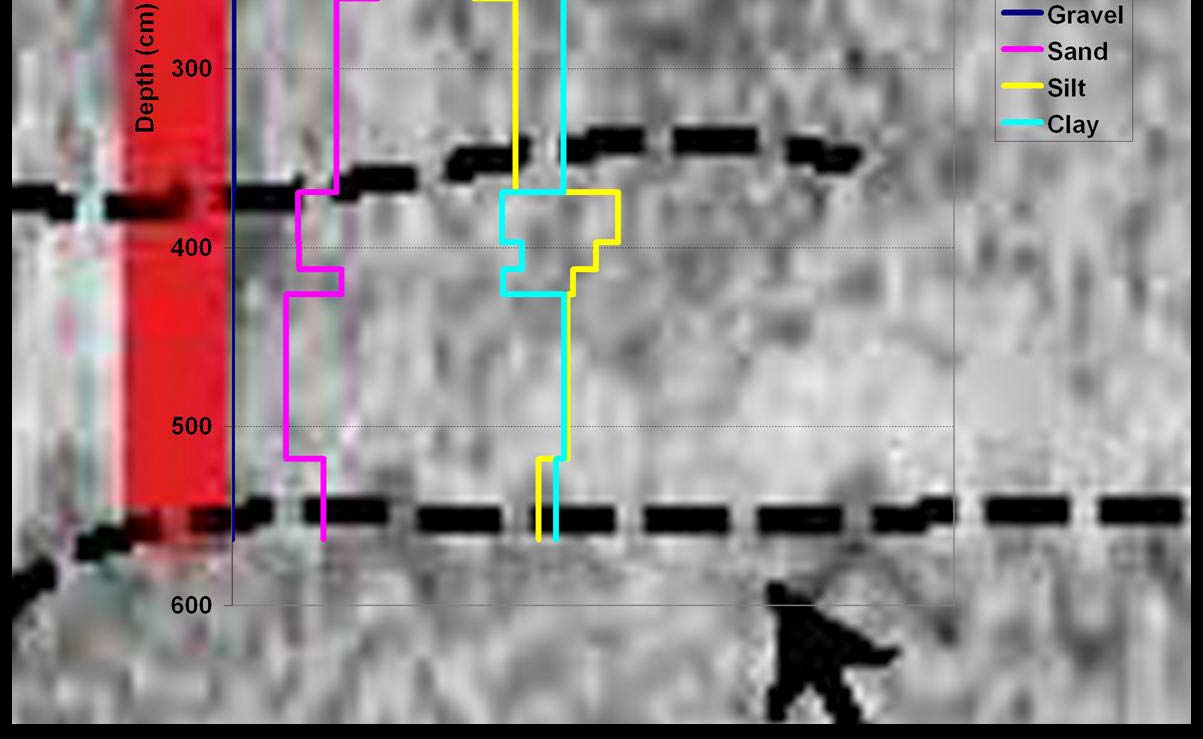

09CCT02_01 Percent Gravel, Sand, Silt and Clay
0
100
200
300
400
500
600
0
10 20 30 40
50607080
90
100
Percent (%)
Depth (cm)
% Gravel
% Sand
% Silt
% Clay
09CCT02_01 Mean Grain Size Distribution
09CCT02_01 Mean Grain Size
0
100
200
300
400
500
600
0
50
100
150
200
250
300
350
400
450
Grain Size (μm)
Depth (cm)
Mean Grain Size
91
09CCT02_01 Strength Graph
09CCT02_01 Strength
0
100
200
300
400
500
600
012345
Strength (kg/cm²)
Depth (cm)
Strength
09CCT02_01 Water Content Graph
09CCT02_01 Water Content
0
100
200
300
400
500
600
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
Water Content (g)
Depth (cm)
Water Content
.
92
09CCT02_01 Grain Size Sand Percent Table
09CCT02-01
Depth
(cm)
63-
257μm
(%)
257-
451μ
m(%)
451-
645μm(
%)
645-
839μ
m
(%)
839-
1033
μm
(%)
1033-
1227
μm
(%)
1227-
1421
μm
(%)
1421-
1615
μm
(%)
1615-
1809
μm
(%)
1809-
2000
μm
(%)
Tot
al
(%)
0-5 92.45 4.37 1.70 1.19
0.28 0.00
0.00
0.00
0.00 0.00 100
10-15 96.10 1.31 1.08 0.99
0.46
0.06
0.00
0.00
0.00 0.00 100
85-90 57.68 6.55 14.87
12.0
1
6.38
2.40
0.11
0.00
0.00 0.00 100
155-160 75.67 5.35
4.47 4.68
3.66 2.55
1.67
1.08
0.55 0.32 100
225-230 81.43 4.55
5.74 4.45
2.46 1.11
0.24
0.03
0.00 0.00 100
255-260 60.62 13.19
6.27 6.12
5.04 3.62
2.39
1.52
0.77 0.45 100
316-321 49.50 13.69
12.75 9.85
6.35 3.74
2.09
1.17
0.55 0.31 100
376-281 62.10 11.42
12.62 8.82
4.35 0.67
0.02
0.00
0.00 0.00 100
401-406 46.48 11.14
15.43
12.9
2
8.06
4.15
1.58
0.25
0.00 0.00 100
412-417 60.14 14.54
9.66 6.45
4.06 2.42
1.41
0.73
0.41 0.18 100
467-472 23.59 6.64
15.98
17.9
0
14.46
9.79
5.91
3.37
1.52 0.84 100
547-552 65.72 5.32
9.27 8.95
5.99 3.25
1.30
0.20
0.00 0.00 100
09CCT02-01
Depth
(cm)
63-
82μm
(%)
82-
101μ
m
(%)
101-
120μ
m
(%)
120-
139μ
m
(%)
139-
158μ
m (%)
158-
177μ
m (%)
177-
196μ
m (%)
196-
215μ
m (%)
215-
234μ
m (%)
234-
257μ
m (%)
Total
(%)
0-5 21.49 18.9815.78 12.52
9.62 7.24
5.34
3.89
2.81 2.33
100
10-15 27.20 21.61 16.21 11.71
8.24
5.70
3.86
2.57
1.68 1.22
100
85-90 37.57 25.84 16.47 9.90
5.59
2.94
1.37
0.33
0.00 0.00
100
155-160 17.04 17.55 16.01 13.47 10.74 8.28
6.21
4.57
3.33 2.80
100
225-230 23.86 21.62 17.14 12.60
8.86 6.05
4.05
2.67
1.77 1.37
100
255-260 7.73 10.98 12.91 13.30 12.59 11.28
9.73
8.18
6.77 6.54
100
316-321 20.90 17.72 14.50 11.56
9.13 7.26
5.84
4.80
4.07 4.23
100
376-281 34.34 21.65 14.08 9.33
6.30 4.42
3.22
2.48
2.04 2.15
100
401-406 34.12 22.08 14.45 9.45
6.25 4.24
3.02
2.33
1.94 2.12
100
412-417 25.97 18.72 13.71 10.23
7.83 6.22
5.12
4.34
3.80 4.06
100
467-472 38.71 22.92 14.43 9.22
6.06 3.96
2.21
1.13
0.62 0.74
100
547-552 24.49 20.62 16.38 12.33
