09CCT02_04 Core Location
122
09CCT02_04 Seismic
123
09CCT02_04 Seismic
124

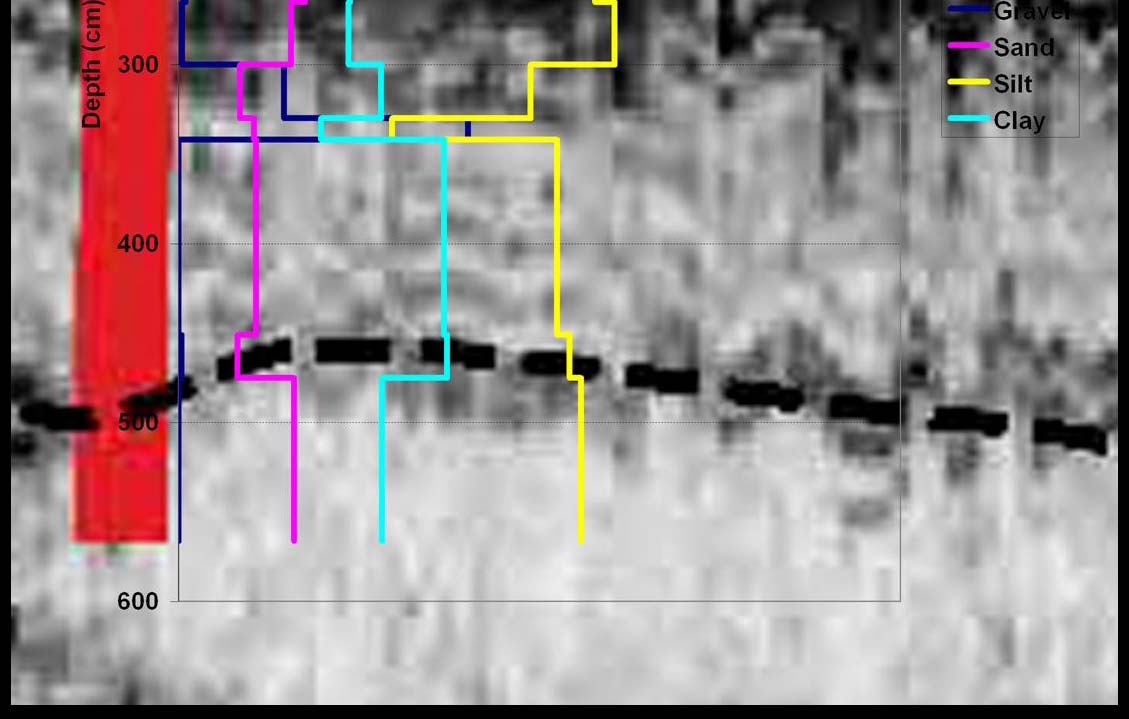

09CCT02_04 Percent Grain Size Distribution Graph

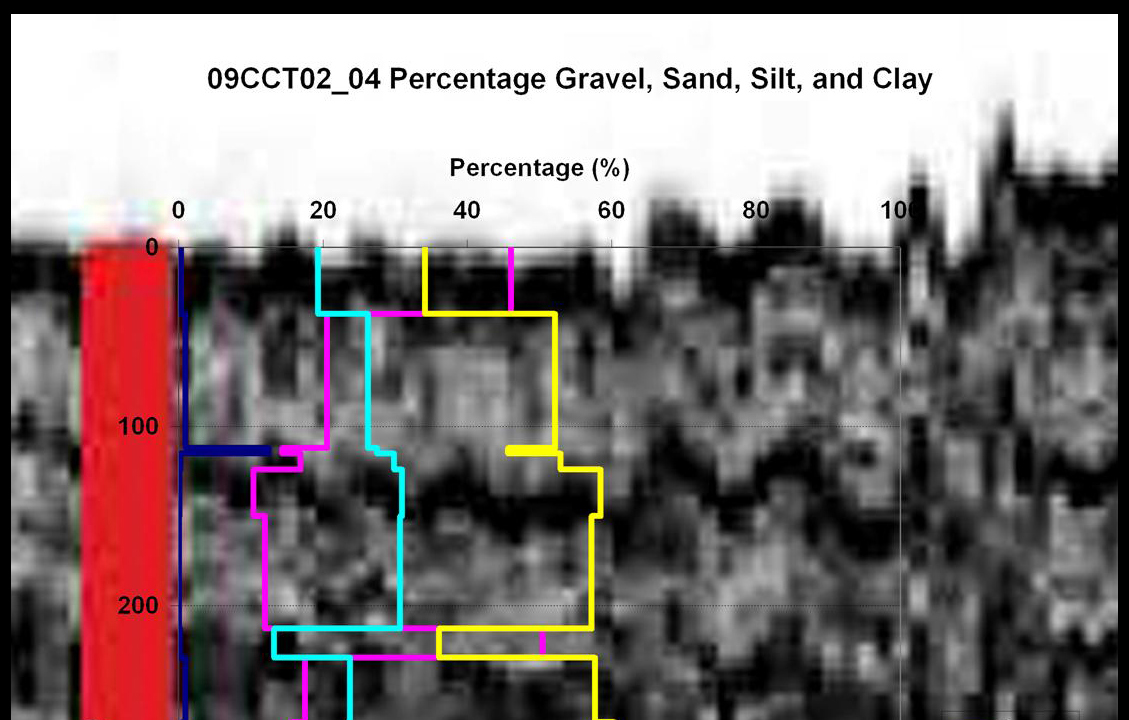

09CCT02_04 Percentage Gravel, Sand, Silt, and Clay
0
100
200
300
400
500
600
0
10 20 30 40
50607080
90
100
Percentage (%)
Depth (cm)
% Gravel
% Sand
% Silt
% Clay
09CCT02_04 Mean Grain Size Graph
09CCT02_04 Mean Grain Size
0
100
200
300
400
500
600
0
50
100
150
200
250
300
350
400
450
Grain Size (μm)
Depth (cm)
Mean Grain Size
125
09CCT02_04 Strength Graph
09CCT02_04 Strength
0
100
200
300
400
500
600
01
2345
Strength (kg/cm²)
Depth (cm)
Strength
09CCT02_04 Water Content Graph
09CCT02_04 Water Content
0
100
200
300
400
500
600
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
Water Content (g)
Depth (cm)
Water Content
126
09CCT02_04 Grain Size Sand Percent Table
09CCT02_04 Grain Size Sand Percent
Depth (cm)
63-
257
μm
(%)
257-
451
μm
(%)
451-
645
μm
(%)
645-
839
μm
(%)
839-
1033
μm
(%)
1033-
1227
μm
(%)
1227-
1421
μm
(%)
1421-
1615
μm
(%)
1615-
1809
μm
(%)
1809-2000 μm
(%)
Total
(%)
20-25 91.04 8.93 0.03 0.000.00
0.00
0.00
0.00
0.00 0.00
100
85-90 96.18 3.82 0.00 0.000.00
0.00
0.00
0.00
0.00 0.00
100
112-115 75.25 1.61 1.42 4.52 5.46 4.69
3.31
2.12
1.04 0.60
100
120-124 68.39 9.87 6.71 5.23 3.86 2.62
1.63
0.97
0.45 0.25
100
135-140 62.85 6.17 6.25 7.00 6.30 4.77
3.17
1.97
0.96 0.55
100
180-185 77.30 1.89 2.80 3.80 4.16 3.68
2.79
1.94
1.03 0.62
100
215-220 100.00 0.00 0.00 0.00 0.00
0.00
0.00
0.00
0.00 0.00
100
260-265 84.54 2.52 3.16 2.70 2.31 1.83
1.31
0.89
0.46 0.27
100
290-295 82.78 3.99 3.73 2.99 2.40 1.74
1.16
0.66
0.38 0.17
100
310-315 64.84 8.89 8.83 6.87 4.64 2.84
1.64
0.83
0.45 0.18
100
335-340 68.99 7.75 7.68 6.06 4.11 2.52
1.48
0.78
0.44 0.19
100
400-405 58.83 7.37 8.56 7.57 6.05 4.52
3.17
2.13
1.13 0.67
100
456-461 51.11 6.47 8.61 8.73 7.82 6.34
4.70
3.32
1.81 1.09
100
536-541 71.79 7.49 6.34 4.94 3.58 2.45
1.59
1.02
0.51 0.30
100
09CCT02-04
Depth (cm)
63-
82μm
(%)
82-
101μm
(%)
101-
120μm
(%)
120-
139μm
(%)
139-
158μm
(%)
158-
177μm
(%)
177-
196μm
(%)
196-
215μm
(%)
215-
234μm
(%)
234-
257μm
(%)
Total
(%)
20-25
4.44 4.85 6.14 7.67
9.38
11.18
12.90
14.24 14.38 14.82
100
85-90
2.31 2.76 3.78 5.14
6.91
9.14
11.91
15.20 23.85 19.02
100
112-115
1.61 2.00 2.81 3.97
5.56 7.75
10.84
15.08 29.45 20.93
100
120-124
2.68 2.63 3.17 3.99
5.23 7.11
10.01
14.39 29.98 20.80
100
135-140
1.48 1.31 1.42 1.62
2.07 3.15
5.64
11.14 49.02 23.15
100
180-185
0.03 0.25 0.52 1.00
2.01 3.95
7.63
14.23 44.76 25.62
100
215-220
0.00 0.00 0.37 1.71
3.50 6.52
11.25
17.93 32.65 26.06
100
260-265
0.00 0.00 0.00 0.01
0.73 2.46
6.17
13.47 50.15 27.01
100
290-295
0.08 0.00 0.00 0.01
0.52 1.94
5.31
12.44 53.05 26.65
100
310-315
1.43 1.21 1.32 1.64
2.35 3.83
6.81
12.58 45.21 23.61
100
335-340
1.49 1.44 1.81 2.44
3.55 5.48
8.78
14.34 37.29 23.38
100
400-405
1.25 1.17 1.49 2.11
3.25 5.26
8.71
14.43 38.67 23.67
100
456-461
0.26 0.00 0.00 0.00
0.00 1.17
4.56
11.41 56.42 26.18
