09CCT02_06B Core Location
157
09CCT02_06B Seismic
158
09CCT02_06B Seismic
159

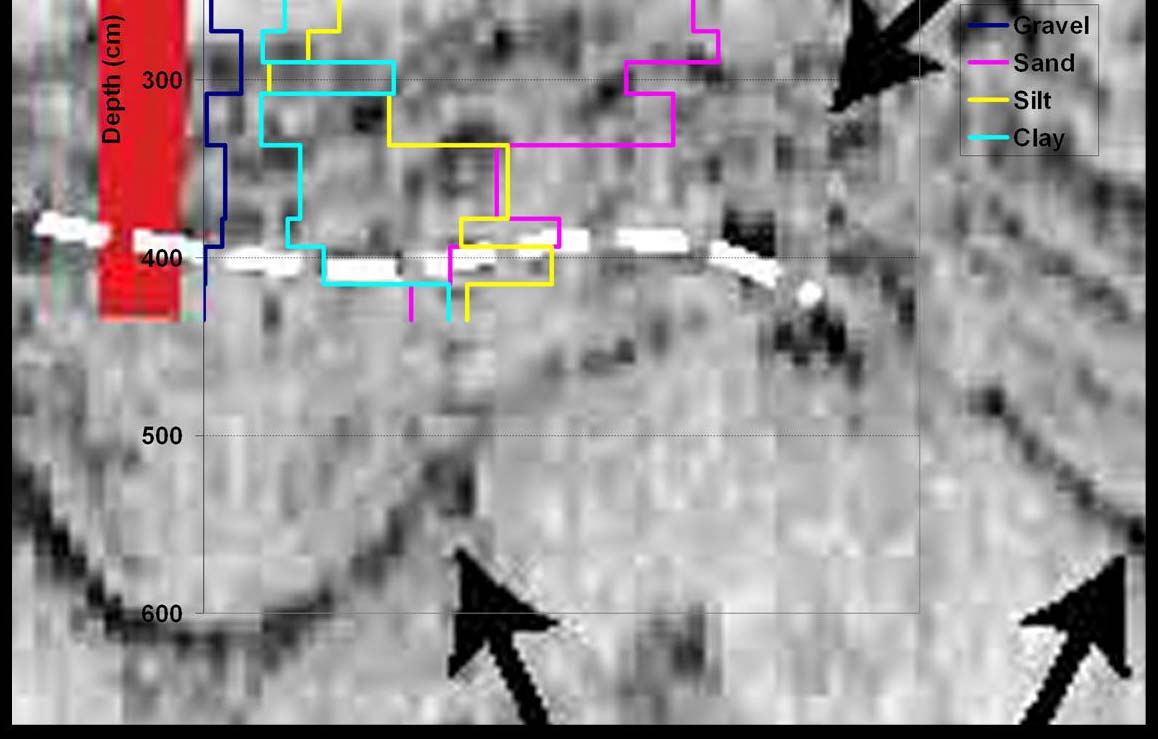

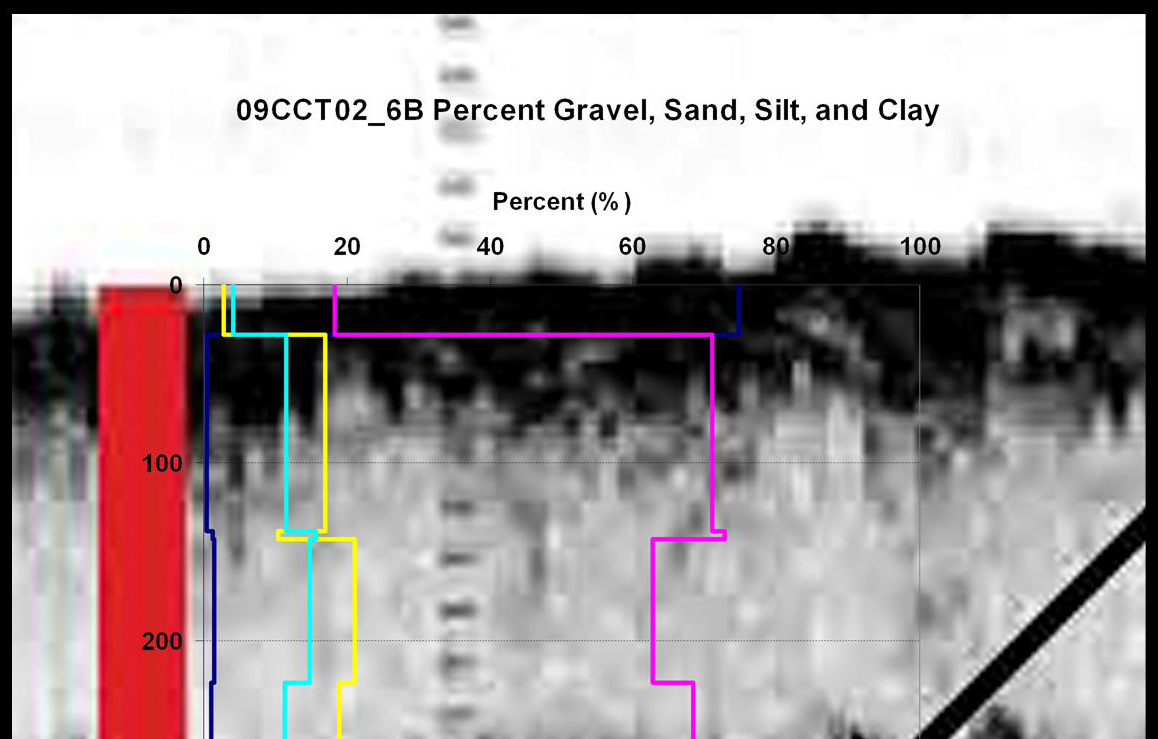

09CCT02_06B Percent Grain Size Distribution Graph
09CCT02_6B Percent Gravel, Sand, Silt, and Clay
0
100
200
300
400
500
600
0
10
20 30 40 50 60 70 80
90
100
Percent (%)
Depth (cm)
Gravel
Sand
Silt
Clay
09CCT02_06B Mean Grain Size Distribution Graph
09CCT02_06B Mean Grain Size
0
100
200
300
400
500
600
0
50
100
150
200
250
300
350
400
450
Grain Size (μm)
Depth (cm)
Mean Grain Size
160
09CCT02_06B Strength Graph
09CCT02_06B Strength
0
100
200
300
400
500
600
012
34
5
Strength (kg/cm²)
Depth (cm)
Strength
09CCT02_06B Water Content Graph
09CCT02_06B Water Content
0
100
200
300
400
500
600
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
Water Content (g)
Depth (cm)
Series1
161
09CCT02_06B Grain Size Sand Percent Table
09CCT02_6B Grain Size Sand Percent
Depth (cm)
63-257
μm (%)
257-
451
μm
(%)
451-
645
μm
(%)
645-
839
μm
(%)
839-
1033
μm
(%)
1033-
1227
μm
(%)
1227-
1421
μm
(%)
1421-
1615
μm
(%)
1615-
1809
μm
(%)
1809-
2000
μm
(%) Total (%)
15-20 70.56 26.82 2.60 0.02
0.00
0.00
0.00
0.00 0.00 0.00
100
75-80 83.51 11.63 0.19 0.76
1.09
1.00
0.78
0.55 0.32 0.18
100
140-143 89.36 9.10 0.00 0.17
0.35 0.35
0.28
0.21 0.11 0.07
100
168-173 93.31 6.69 0.00 0.00
0.00 0.00
0.00
0.00 0.00 0.00
100
248-253 96.30 3.70 0.00 0.00
0.00 0.00
0.00
0.00 0.00 0.00
100
278-283 97.59 2.41 0.00 0.00
0.00 0.00
0.00
0.00 0.00 0.00
100
295-300 94.64 2.42 0.44 0.86
0.65 0.42
0.27
0.16 0.09 0.05
100
320-325 97.72 2.28 0.00 0.00
0.00 0.00
0.00
0.00 0.00 0.00
100
355-360 95.80 0.28 0.64 1.01
0.77 0.56
0.41
0.28 0.17 0.09
100
390-394 94.43 0.56 0.99 1.30
0.97 0.69
0.47
0.32 0.17 0.10
100
405-410 100.00 0.00 0.00 0.00
0.00 0.00
0.00
0.00 0.00 0.00
100
420-425 88.76 0.15 2.26 2.44
2.02 1.58
1.18
0.85 0.47 0.29
100
09CCT02-06B
Depth (cm)
63-
82μm
(%)
82-
101μm
(%)
101-
120μm
(%)
120-
139μm
(%)
139-
158μm
(%)
158-
177μm
(%)
177-
196μm
(%)
196-
215μm
(%)
215-
234μm
(%)
234-
257μm
(%)
Total
(%)
15-20
10.64 10.18 11.36 12.35
12.93
12.83
11.75
9.45 2.46 6.04
100
75-80
6.09 6.56 8.16 9.94
11.73
13.26
14.05
13.45 6.01 10.76
100
140-143
5.24 5.83 7.43 9.29
11.25 13.08
14.32
14.26 7.27 12.03
100
168-173
4.31 4.95 6.49 8.36
10.45 12.56
14.33
15.05 9.74 13.76
100
248-253
3.10 3.83 5.29 7.16
9.40 11.90
14.37
16.13 12.77 16.05
100
278-283
2.50 3.26 4.69 6.57
8.92 11.65
14.50
16.77 13.96 17.18
100
295-300
2.16 2.78 4.02 5.70
7.88 10.57
13.66
16.67 17.94 18.62
