09CCT02_18 Core Location
295
09CCT02_18 Seismic
296
09CCT02_18 Seismic
297

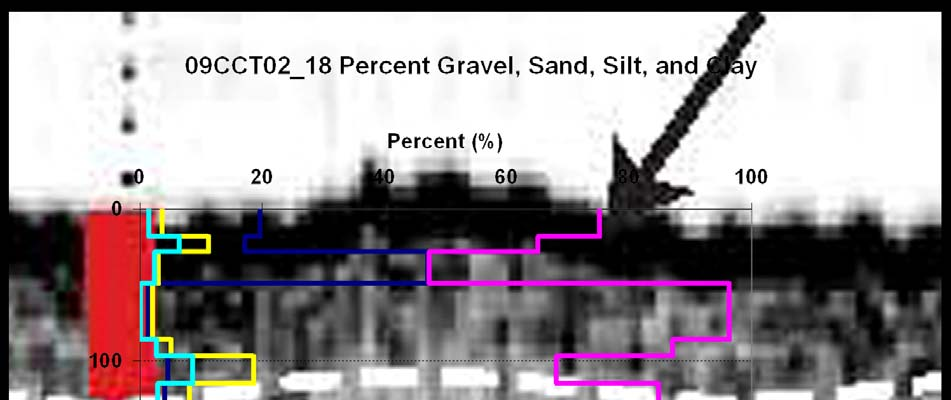

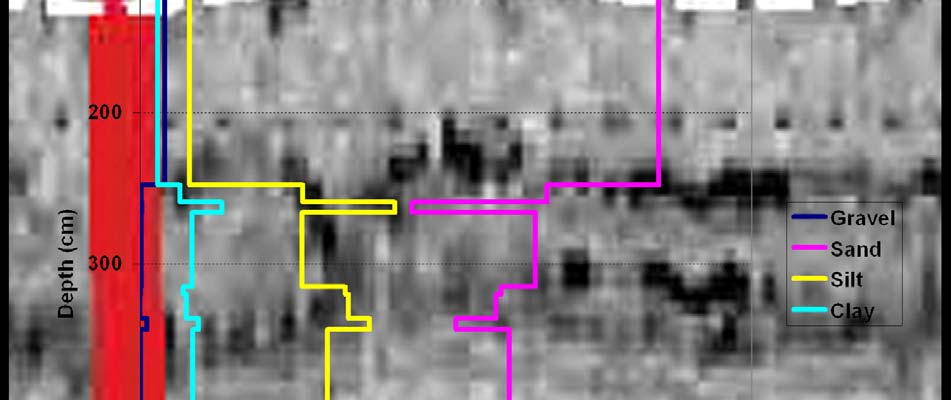

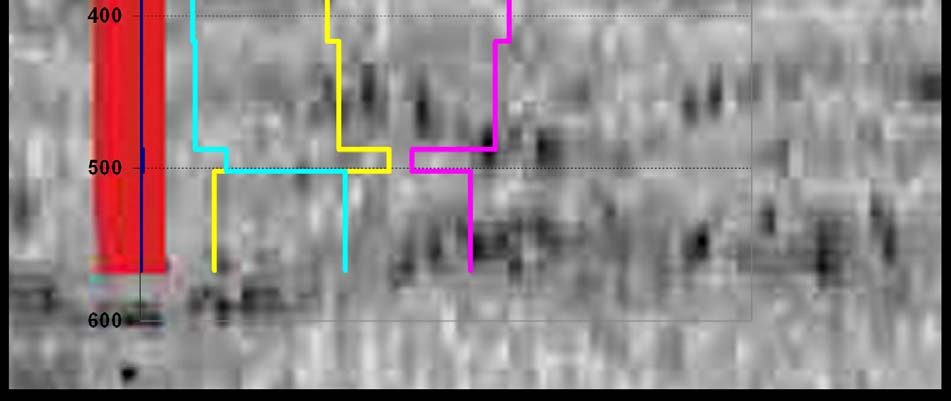

09CCT02_18 Percent Grain Size Distribution Graph
09CCT02_18 Percent Gravel, Sand, Silt, and Clay
0
100
200
300
400
500
600
0
10
20 30 40 50 60 70 80
90
100
Percent (%)
Depth (cm)
Gravel
Sand
Silt
Clay
09CCT02_18 Mean Grain Size Distribution
09CCT02_18 Mean Grain Size
0
100
200
300
400
500
600
0
50
100
150
200
250
300
350
400
450
Grain Size (μm)
Depth (cm)
Mean Grain Size
298
09CCT02_18 Strength Graph
09CCT02_18 Strength
0
100
200
300
400
500
600
012
34
5
Stength (kg/cm²)
Depth (cm)
Strength
09CCT02_18 Water Content Graph
09CCT02_18 Water Content
0
100
200
300
400
500
600
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
Water Content (g)
Depth (cm)
Water Content
299
09CCT02_18 Grain Size Sand Percent Table
09CCT02_18 Grain Size Sand Percent
Depth (cm)
63-
257
μm
(%)
257-
451
μm
(%)
451-
645
μm
(%)
645-
839
μm
(%)
839-
1033
μm
(%)
1033-
1227
μm
(%)
1227-
1421
μm
(%)
1421-
1615
μm
(%)
1615-
1809
μm
(%)
1809-
2000
μm
(%) Total (%)
10-15
69.31 24.24 2.61 0.62
0.79
0.82
0.68
0.49 0.29 0.16
100
20-25
72.80 24.32 2.05 0.08
0.16
0.19
0.17
0.12 0.07 0.04
100
35-40
65.10 26.75 4.12 1.18
0.88
0.74
0.55
0.37 0.20 0.12
100
70-75
73.88 24.76 1.37 0.00
0.00
0.00
0.00
0.00 0.00 0.00
100
95-97
75.71 23.54 0.75 0.00
0.00
0.00
0.00
0.00 0.00 0.00
100
105-110
84.99 14.76 0.25 0.00
0.00 0.00
0.00
0.00 0.00 0.00
100
185-190
77.12 22.17 0.70 0.00
0.00 0.00
0.00
0.00 0.00 0.00
100
250-255
86.29 11.63 0.55 0.25
0.35 0.33
0.26
0.17 0.11 0.06
100
260-265
88.82
9.72 0.71 0.16
0.17 0.15
0.11
0.08 0.05 0.02
100
286-291
88.11
9.78 0.54 0.35
0.38 0.32
0.23
0.15 0.09 0.05
100
316-320
89.90
8.18 0.34 0.31
0.38 0.33
0.25
0.16 0.10 0.05
100
326-331
85.11 11.09 0.83 0.53
0.69 0.64
0.49
0.34 0.18 0.11
100
341-343
83.62 10.16 1.21 1.07
1.17 1.02
0.76
0.53 0.28 0.17
100
396-401
89.26
8.87 0.42 0.32
0.36 0.30
0.21
0.13 0.08 0.04
100
452-457
85.30
8.45 1.22 1.25
1.22 0.98
0.70
0.48 0.25 0.15
100
497-502
89.92
7.94 0.49 0.41
0.42 0.33
0.23
0.14 0.08 0.04
100
557-562
89.17
7.69 0.35 0.66
0.70 0.56
0.39
0.26 0.13 0.08
100
09CCT02-18
Depth (cm)
63-
82μm
(%)
82-
101μm
(%)
101-
120μm
(%)
120-
139μm
(%)
139-
158μm
(%)
158-
177μm
(%)
177-
196μm
(%)
196-
215μm
(%)
215-
234μm
(%)
234-
257μm
(%)
Total
(%)
10-15 10.24 9.93 11.22 12.35
13.08
13.13
12.13
9.79 2.03 6.11
100
20-25 9.97 9.71 11.02 12.18
12.98
13.12
12.24
10.01 2.38 6.40
100
35-40
11.22 10.72 11.94 12.93
13.44
13.17
11.75
8.95 0.93 4.96
100
70-75
10.85 10.66 12.11 13.30
13.91
13.57
11.89
8.68 0.65 4.37
100
95-97
10.57 10.46 11.95 13.19
13.85
13.58
11.96
8.84 0.96 4.64
100
105-110
6.58 6.82 8.19 9.64
11.04 12.17
12.76
12.48 9.17 11.15
100
185-190 9.36 9.25 10.63 11.89
12.82 13.11
12.41
10.37 3.17 6.99
100
250-255
5.08 5.35 6.56 7.97
9.50 11.07
12.55
13.69 14.03 14.22
100
260-265
3.97 4.20 5.21 6.43
7.88 9.59
11.60
13.98 20.30 16.83
100
286-291
4.49 4.84 6.06 7.53
9.18 10.96
12.73
14.21 14.94 15.06
100
316-320
3.86 4.22 5.34 6.72
8.33 10.15
12.14
14.23 18.64 16.36
100
326-331
4.72 4.93 6.01 7.25
8.62 10.09
11.64
13.30 18.15 15.29
100
341-343
4.36 4.56 5.58 6.78
8.14 9.66
11.38
13.41 20.05 16.07
100
396-401
4.12 4.47 5.65 7.08
8.72 10.56
12.50
14.36 16.68 15.85
100
452-457
3.91 4.24 5.36 6.73
8.35 10.21
